Product Details
Place of Origin: Sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC1000-480KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case packaging
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 50 per month
Product Number: |
DC 480KW Charger |
AC Input Voltage Range: |
380V±15%, 3-phase+N+PE |
Ac Input Frequency: |
45Hz～66Hz |
DC Output Current: |
0~600A |
DC Output Voltage Range: |
200～1000Vdc |
Power: |
480 KW |
Efficiency: |
≥96% (full Load) |
Communication Interface: |
4G, RS485, CAN, Ethernet |
Altitude: |
≤2000m; |
Charging Cable Length: |
5 Meters |
Charging Port: |
Single Or Dual |
Communication Protocol: |
OCPP 1.6 |
Display: |
Touch Screen |
Protection Grade: |
IP54 |
Running Instructions: |
Power, Charging, Failure |
Standard: |
GB/T,CCS2,CCS1 |
Product Number: |
DC 480KW Charger |
AC Input Voltage Range: |
380V±15%, 3-phase+N+PE |
Ac Input Frequency: |
45Hz～66Hz |
DC Output Current: |
0~600A |
DC Output Voltage Range: |
200～1000Vdc |
Power: |
480 KW |
Efficiency: |
≥96% (full Load) |
Communication Interface: |
4G, RS485, CAN, Ethernet |
Altitude: |
≤2000m; |
Charging Cable Length: |
5 Meters |
Charging Port: |
Single Or Dual |
Communication Protocol: |
OCPP 1.6 |
Display: |
Touch Screen |
Protection Grade: |
IP54 |
Running Instructions: |
Power, Charging, Failure |
Standard: |
GB/T,CCS2,CCS1 |

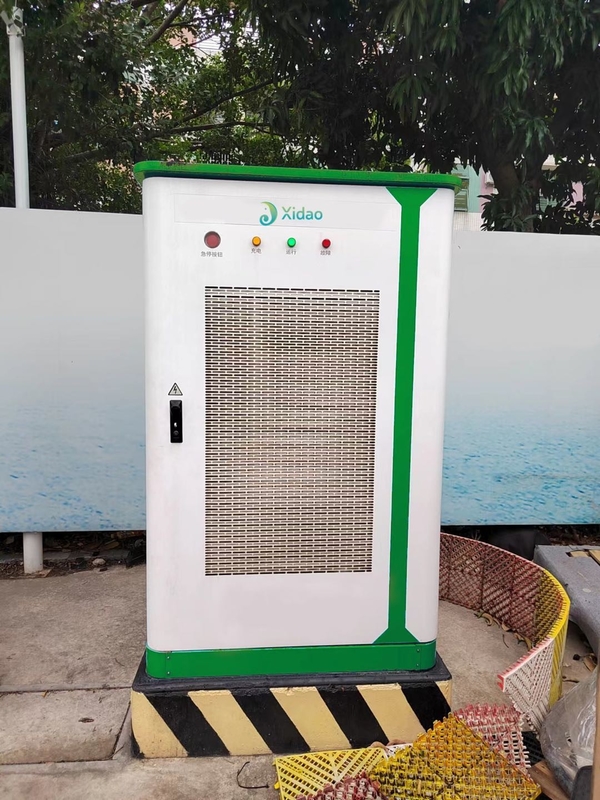

480KW Liquid-Cooled Super DC Charger
Product Highlights
1. The liquid cooling technology is adopted to realize the miniaturization and softness of the liquid cooling cable, which can carry a current of 600A, and the temperature of the charging gun terminal is lower than 55 ℃; the cooling liquid is an organic synthetic liquid, which will not freeze at minus 45 ℃; cooling The source module has monitoring and alarming devices for the working pressure, flow and temperature of the coolant.
2. It can meet the needs of high-power and fast charging of electric vehicles, realize the full charge of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.
3. Meet the charging requirements of all models and different powers, and dynamically match the charging power required for the electric vehicle connected to any terminal;
4. Adopt an intelligent charging module, which has the advantages of high power, high efficiency, low harmonics, and high intelligence, especially suitable for high-power charging of electric vehicles in public transportation;
5. According to the charging demand issued by the charging vehicle BMS, the charging power is dynamically allocated, thereby improving the utilization rate of charging equipment and realizing highly integrated management: integrated power conversion, dynamic power distribution, station-level monitoring, orderly charging management, new energy power generation And energy storage system access, cooling control, integrated wiring;
6. Strong scalability (corresponding charging modules can be expanded to meet charging needs), energy saving, and high efficiency (efficiency reaches over 96%).
7. One main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.
8. Standard 4G module, charging operation: swipe card/scan code;
9. Payment method: RFID card.
| Projects | Parameter indicators | Remarks |
| Model | XD-DC1000-480KW-1+4-GB/T | |
|
Main cabinet Size |
2003.5*993*1092mm | H*W*D |
| Sub-cabinet Size |
1532*550*389mm liquid-cooling Supercharging) 1377*500*290mm(Fast-charging) |
H*W*D |
| AC input voltage | 380V±15% | Three-phase five line system(TN-S) |
| AC input frequency | 45Hz～55Hz | |
| Power Rating | 480kW | |
| Output Voltage | DC200～1000V | |
| Output Current |
0～250A(single gun fast-charging) 0～600A(liquid-cooling supercharging) |
|
| Power Factor | ≥0.99 | 50%P0 More than 50%P0 output condition 50%P0 |
| Efficiency | ≥96% | Peak efficiency |
| Measurement Method | DC meter metering | Accuracy level 0.5 |
| Cooling Method | Forced air cooling | |
| Protection Level | IP54 | |
| Altitude | ≤2000m | |
| Operating temperature | -20℃～50℃ | Above 50℃ derate working, 70℃ stop working |
|
Relative Humidity |
≤95 % | Non-condensing |
|
Charging port |
GB/T20234.3-2015 DC charging interface | |
| Communication Interface | 4G, RS485, CAN, Ethernet | |
| Main cabinet Size | 2003.5*993*1092mm | H*W*D |
| Sub-cabinet Size |
1532*550*389mm liquid-cooling Supercharging) 1377*500*290mm(Fast-charging) |
H*W*D |
