Highly Integrated Management Super Fast Ev Charger for Electric Vehicles

Product Details

Place of Origin: Sichuan

Brand Name: Xidao

Certification: CE

Model Number: XD-DC1000-480KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Wooden case packaging

Delivery Time: 30 work days

Payment Terms: T/T

Supply Ability: 50 per month

Get Best Price
High Light:

DC Rapid EV Charger

,

380V Rapid EV Charger

,

SAE J1772 EV Fast Charger

Product Number:
DC 480KW Charger
AC Input Voltage Range:
380V±15%, 3-phase+N+PE
Ac Input Frequency:
45Hz~66Hz
DC Output Current:
0~600A
DC Output Voltage Range:
200~1000Vdc
Power:
480 KW
Efficiency:
≥96% (full Load)
Communication Interface:
4G, RS485, CAN, Ethernet
Altitude:
≤2000m;
Charging Cable Length:
5 Meters
Charging Port:
Single Or Dual
Communication Protocol:
OCPP 1.6
Display:
Touch Screen
Protection Grade:
IP54
Running Instructions:
Power, Charging, Failure
Standard:
GB/T,CCS2,CCS1
Product Number:
DC 480KW Charger
AC Input Voltage Range:
380V±15%, 3-phase+N+PE
Ac Input Frequency:
45Hz~66Hz
DC Output Current:
0~600A
DC Output Voltage Range:
200~1000Vdc
Power:
480 KW
Efficiency:
≥96% (full Load)
Communication Interface:
4G, RS485, CAN, Ethernet
Altitude:
≤2000m;
Charging Cable Length:
5 Meters
Charging Port:
Single Or Dual
Communication Protocol:
OCPP 1.6
Display:
Touch Screen
Protection Grade:
IP54
Running Instructions:
Power, Charging, Failure
Standard:
GB/T,CCS2,CCS1
Highly Integrated Management Super Fast Ev Charger for Electric Vehicles




480KW  Liquid-Cooled Super DC Charger


Product Highlights


1. The liquid cooling technology is adopted to realize the miniaturization and softness of the liquid cooling cable, which can carry a current of 600A, and the temperature of the charging gun terminal is lower than 55 ℃; the cooling liquid is an organic synthetic liquid, which will not freeze at minus 45 ℃; cooling The source module has monitoring and alarming devices for the working pressure, flow and temperature of the coolant.



2. It can meet the needs of high-power and fast charging of electric vehicles, realize the full charge of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.



3. Meet the charging requirements of all models and different powers, and dynamically match the charging power required for the electric vehicle connected to any terminal;



4. Adopt an intelligent charging module, which has the advantages of high power, high efficiency, low harmonics, and high intelligence, especially suitable for high-power charging of electric vehicles in public transportation;



5. According to the charging demand issued by the charging vehicle BMS, the charging power is dynamically allocated, thereby improving the utilization rate of charging equipment and realizing highly integrated management: integrated power conversion, dynamic power distribution, station-level monitoring, orderly charging management, new energy power generation And energy storage system access, cooling control, integrated wiring;



6. Strong scalability (corresponding charging modules can be expanded to meet charging needs), energy saving, and high efficiency (efficiency reaches over 96%).



7. One main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.



8. Standard 4G module, charging operation: swipe card/scan code;



9. Payment method: RFID card.





Projects Parameter indicators Remarks
Model XD-DC1000-480KW-1+4-GB/T



Main cabinet Size

2003.5*993*1092mm H*W*D
Sub-cabinet Size

1532*550*389mm liquid-cooling Supercharging)

1377*500*290mm(Fast-charging)

H*W*D
AC input voltage 380V±15% Three-phase five line system(TN-S)
AC input frequency 45Hz~55Hz
Power Rating 480kW
Output Voltage DC200~1000V
Output Current

0~250A(single gun fast-charging)

0~600A(liquid-cooling supercharging)


Power Factor ≥0.99 50%P0 More than 50%P0 output condition 50%P0
Efficiency ≥96% Peak efficiency
Measurement Method DC meter metering Accuracy level 0.5
Cooling Method Forced air cooling
Protection Level IP54
Altitude ≤2000m
Operating temperature -20℃~50℃ Above 50℃ derate working, 70℃ stop working



Relative Humidity

≤95 % Non-condensing



Charging port

GB/T20234.3-2015 DC charging interface
Communication Interface 4G, RS485, CAN, Ethernet
Main cabinet Size 2003.5*993*1092mm H*W*D
Sub-cabinet Size

1532*550*389mm liquid-cooling Supercharging)

1377*500*290mm(Fast-charging)

H*W*D

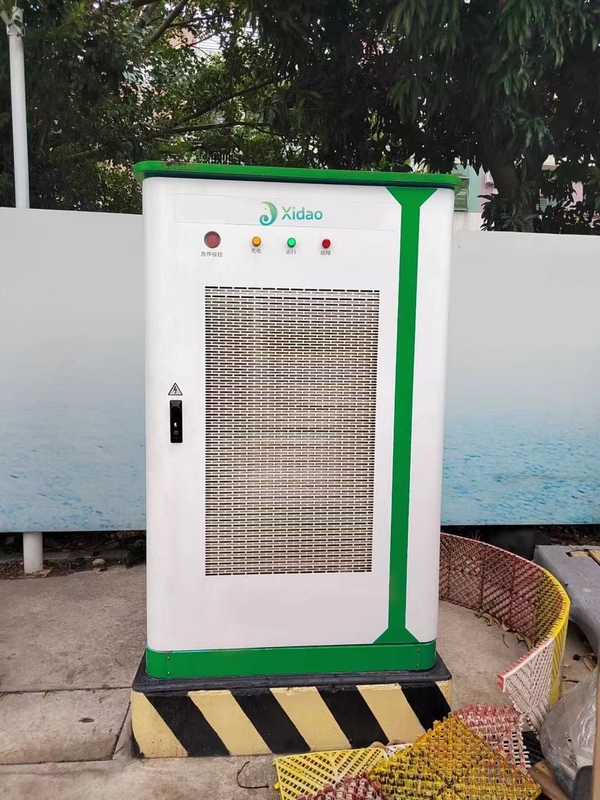

Highly Integrated Management Super Fast Ev Charger for Electric Vehicles 0
