Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: SAE J1772
Model Number: XD-DC-1600KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Model: |
Liquid-cooled Charging Stack |
AC Input Voltage: |
Three-phase Five-wire System |
Output Current: |
0～600A |
Power Factor: |
≥0.99（50%PO Above Input Condition） |
Efficiency: |
≥96%（Peak Efficiency） |
Measuring Method: |
DC Ammeter Measuring（Precision Grade: 0.5） |
Cooling Method: |
Forced Air Cooling + Liquid Cooling |
Protection Grade: |
IP54 |
Model: |
Liquid-cooled Charging Stack |
AC Input Voltage: |
Three-phase Five-wire System |
Output Current: |
0～600A |
Power Factor: |
≥0.99（50%PO Above Input Condition） |
Efficiency: |
≥96%（Peak Efficiency） |
Measuring Method: |
DC Ammeter Measuring（Precision Grade: 0.5） |
Cooling Method: |
Forced Air Cooling + Liquid Cooling |
Protection Grade: |
IP54 |

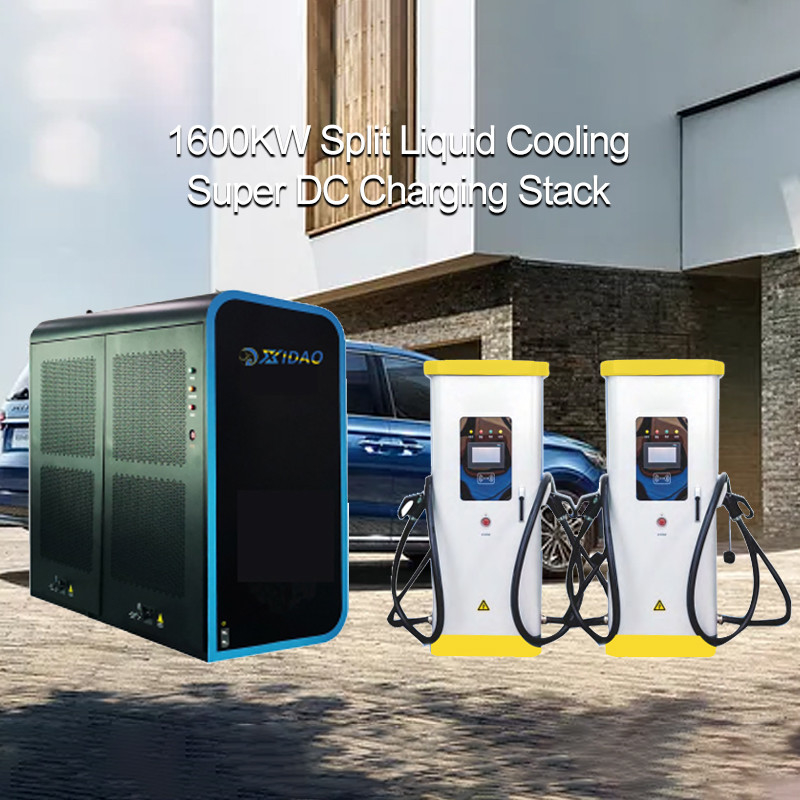

1600KW Split Liquid-Cooled Super DC Charging Stack CAN Communication/PLC (Customized) OCPP
Application Scenarios
With the continuous development of new energy vehicle industry, new energy vehicles will be fully applied to buses, cabs, freight vehicles and postal vehicles. The proportion of new energy vehicles, such as heavy-duty cargo vehicles and engineering vehicles, is also on the rise. The range of domestic vehicles is also increasing, and the charging efficiency of charging piles is also putting forward higher and higher requirements.
At present, GB20234.3-2015 standard specifies the charging gun, the matching cable outer diameter is about 40mm, the soft core cross-sectional area is 70m㎡, and the nominal maximum bearing capacity is 250A. However, in the actual use process, the heat generated by the cable copper wire cannot show good heat dissipation, and for the safe operation of the whole charging system, the charging pile control system will limit the charging current according to the temperature To enable stable operation.
In order to keep up with the growing demand for pure electric vehicles, the construction of high power DC charging piles has become a mandatory requirement, with an output current between 300A-600A, so that high power pure electric vehicles can be fully charged in 15-20 minutes. Ordinary charging piles cannot meet this technical requirement.
Liquid-cooled super charging pile, equipped with liquid-cooled charging system, adds liquid-cooled charging gun, liquid-cooled cable, cooling module and other systems. With the control cable outer diameter of 39mm, high current charging of 600A and even 800A can be achieved. The temperature is controlled below 55℃, which is safe and light to achieve the purpose of fast charging of large electric vehicles.
| Items | Performance Name | Remarks |
| Model | Split DC liquid-cooled charging stack | |
| Dimension of Main Cabinet | 2183*1163*1056.4mm | H*W*D |
| Dimension of Split Cabinet | 1815*772*508mm | H*W*D |
| AC Input Voltage | 380V±15% | Three-phase Five-wire System |
| AC Input Frequency | 45Hz～66Hz | |
| Rated Power | Pe≤450kW | |
| Output Voltage | 200-1000vdc (300-1000vdc constant power) | |
| Output Current | 0～600A | |
| Power Factor | ≥0.99 | 50%PO above input condition |
| Efficiency | ≥96% | Peak Efficiency |
| Measuring Method | DC ammeter measuring | Precision grade: 0.5 |
| Cooling Method | Forced air cooling + liquid cooling | |
| Protection Grade | IP54 | |
| Altitude | ≤2000m | It will start derating work in case of 50℃ above and stop working in case of 70℃ |
| Working Temperature | -20℃～50℃ | No condensation |
| Relative Humidity | 5%～95% | |
| Communication Interface | 4G, RS485, CAN, Ethernet (Optional) | |
| Installation Method | Floor fixed | |
| Starting Method | Start swiping card and scanning code | |
| Items | Performance of Liquid Cooling gun | Parameter Indicator |
| Electrical Performance | Rated Voltage | 1000V |
| Max. Output Current Insulation Resistance | 600A | |
| 500MΩ(500VDC) | ||
| Charging Interface | GB/T20234.3-2015 DC Charging Interface | |
| Charging Gun | 600A liquid cooling gun with the wire length of 5m | |
| Mechanical Performance | Mechanical Life | 10,000 times |
| Locking Force | 200N | |
| Environment Performance | Usage Environmental Temperature | -35～50℃ |
| Working Temperature | -35～90℃ | |
| Protection Grade | Plug and anti-dust cover: IP54; combination of plug and socket: IP55 | |
| Liquid Cooling Cable | Max. Cable Length | 5m |
| Outer Diameter of Cable | 28mm | |
| Spec. of Power Line | 35mm² | |
| Cooling Loop | Cooling Liquid | 45# transformer oil (not freeze under -45℃) |
| Outer/Inner Diameter of Liquid Inlet Pipe | Φ8/φ6 | |
| Loop Characteristics | There is set DC+ liquid inlet and DC- liquid outlet, forming the cooling loop | |
| Liquid Cooling Source | ||
| Rated Voltage | 220VAC | |
| Rated Power | 550W | |
| Working Pressure | 10bar | |
| Flow Rate | 8L/min | |
| Power of Cooling Fan | 90W | |
| Noise | ≤60 db | |
| Function | Cooling liquid working pressure monitoring, cooling liquid flow rate monitoring, cooling liquid temperature monitoring; low temperature alarm, over-temperature alarm, cutoff alarm, cooling liquid over-temperature alarm | |
| Size | 550MM*200MM*600MM | |
| Communication Interface | RS485 | |
| Communication | Operation background | OCCP |
| Communication method | CAN communication/PLC (customized) | |
| Communication interface | Ethernet, GPRS, 4G | |
| Communication protocol |
ISO15118/OCCP1.6 (American Standard) IEC 62196-3 (European standard) |
|
| Charging protocol | DIN70121 | |
| Charging gun standard |
CCS Stype1 (American standard) CCS Stype2 (European standard) |
|
| Charging mode | IEC 61851 charging mode 4 |
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
