Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC-720KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
AC Input Voltage:: |
380V±15% |
Charging Operation: |
Swipe /scan Code |
Running Instructions: |
Power, Charging, Failure |
Thermal Control: |
Air Cooling |
BMS Auxiliary Power (V): |
12/24 |
Power Distribution: |
Equalization / Smart Distribution / Switching |
Altitude:: |
≤2000m; |
Working Temperature(℃): |
-20~+50 |
AC Input Voltage:: |
380V±15% |
Charging Operation: |
Swipe /scan Code |
Running Instructions: |
Power, Charging, Failure |
Thermal Control: |
Air Cooling |
BMS Auxiliary Power (V): |
12/24 |
Power Distribution: |
Equalization / Smart Distribution / Switching |
Altitude:: |
≤2000m; |
Working Temperature(℃): |
-20~+50 |

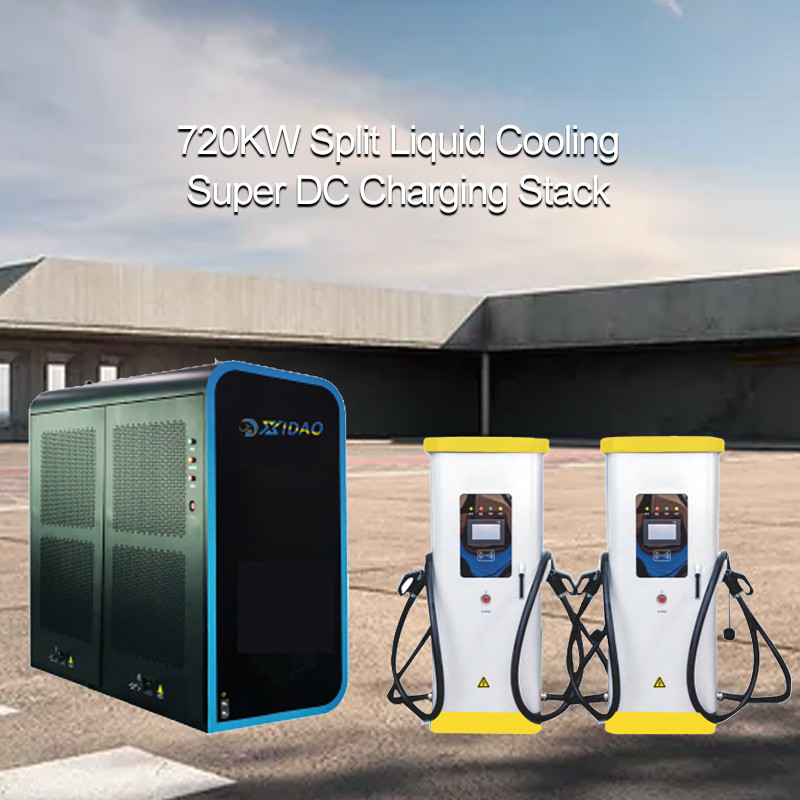

720KW Split Liquid-Cooled Super DC Charging Stack AC Input Frequency: 45～66Hz
Product Highlights
1. The liquid cooling technology is adopted to realize the miniaturization and softness of the liquid cooling cable, which can carry a current of 600A, and the temperature of the charging gun terminal is lower than 55 ℃; the cooling liquid is an organic synthetic liquid, which will not freeze at minus 45 ℃; cooling The source module has monitoring and alarming devices for the working pressure, flow and temperature of the coolant.
2. It can meet the needs of high-power and fast charging of electric vehicles, realize the full charge of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.
3. Meet the charging requirements of all models and different powers, and dynamically match the charging power required for the electric vehicle connected to any terminal;
4. Adopt intelligent charging module, which has the advantages of high power, high efficiency, low harmonics, and high intelligence, especially suitable for high-power charging of electric vehicles in public transportation;
5. According to the charging demand issued by the charging vehicle BMS, the charging power is dynamically allocated, thereby improving the utilization rate of charging equipment and realizing highly integrated management: integrated power conversion, dynamic power distribution, station-level monitoring, orderly charging management, new energy power generation And energy storage system access, cooling control, integrated wiring;
6. Strong scalability (corresponding charging modules can be expanded to meet charging needs), energy saving and high efficiency (efficiency reaches over 96%).
7. One main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.
8. Standard 4G module, charging operation: swipe card / scan code;
9. Payment method: RFID card.
| AC input voltage: | 380V±15% |
| AC input frequency: | 45～66Hz |
| The output voltage: | 200-1000Vdc (300-1000Vdc constant power); |
| efficiency: | ≥96% |
| Output current: | 0～600A; |
| Measurement method: | DC meter measurement; |
| Altitude: | ≤2000m; |
| Operating temperature: | -20℃～50℃; |
| Communication Interface: | 4G, RS485, CAN, Ethernet |
| Charging gun: | 600A liquid-cooled gun, wire length 5m; |
| Protection class: | Plug and dust cover IP54; plug and socket box IP55 |
| cooling method: | Forced air cooling + liquid cooling; cooling fan power 90W; |
| Cooling source module size: | 550*200*600mm |
| Operation background: | OCCP |
| way of communication: | CAN communication/PLC (customized) |
| Communication Interface: | Ethernet, GPRS, 4G |
| letter of agreement: | ISO15118/OCCP1.6 (American Standard) IEC 62196-3 (European Standard) |
| Charging protocol: | DIN70121 |
| Charging gun standard: | CCS Stype1 (American Standard)/CCS Stype2 (European Standard) |
| Charging Mode: | IEC 61851 Charge Mode 4 |
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
