RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: SAE J1772

Model Number: XD-DC-900KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

RFID Card Rapid EV Charging Stations

,

96% Efficiency Rapid EV Charging Stations

,

Ethernet EV Fast Charger

AC Input Voltage::
380V±15%
Altitude:
≤2000m(It Will Start Derating Work In Case Of 50℃ Above And Stop Working In Case Of 70℃)
Working Temperature:
-20℃~50℃(No Condensation)
Relative Humidity:
5%~95%
Communication Interface:
4G, RS485, CAN, Ethernet (Optional)
Installation Method:
Floor Fixed
Altitude::
≤2000m;
Starting Method:
Start Swiping Card And Scanning Code
AC Input Voltage::
380V±15%
Altitude:
≤2000m(It Will Start Derating Work In Case Of 50℃ Above And Stop Working In Case Of 70℃)
Working Temperature:
-20℃~50℃(No Condensation)
Relative Humidity:
5%~95%
Communication Interface:
4G, RS485, CAN, Ethernet (Optional)
Installation Method:
Floor Fixed
Altitude::
≤2000m;
Starting Method:
Start Swiping Card And Scanning Code
RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication

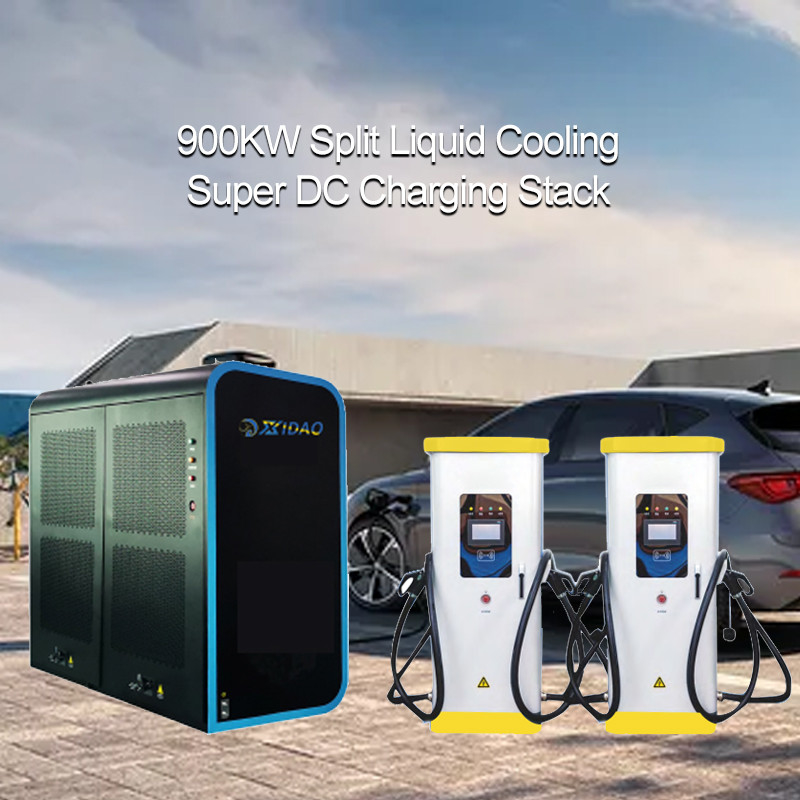

900KW Split Liquid-Cooled Super DC Charging Stack ISO15118/OCCP1.6/IEC 62196-3




Product Highlights


1. The liquid cooling technology is adopted to realize the miniaturization and softness of the liquid cooling cable, which can carry a current of 600A, and the temperature of the charging gun terminal is lower than 55 ℃; the cooling liquid is an organic synthetic liquid, which will not freeze at minus 45 ℃; cooling The source module has monitoring and alarming devices for the working pressure, flow and temperature of the coolant.



2. It can meet the needs of high-power and fast charging of electric vehicles, realize the full charge of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.



3. Meet the charging requirements of all models and different powers, and dynamically match the charging power required for the electric vehicle connected to any terminal;



4. Adopt intelligent charging module, which has the advantages of high power, high efficiency, low harmonics, and high intelligence, especially suitable for high-power charging of electric vehicles in public transportation;



5. According to the charging demand issued by the charging vehicle BMS, the charging power is dynamically allocated, thereby improving the utilization rate of charging equipment and realizing highly integrated management: integrated power conversion, dynamic power distribution, station-level monitoring, orderly charging management, new energy power generation And energy storage system access, cooling control, integrated wiring;



6. Strong scalability (corresponding charging modules can be expanded to meet charging needs), energy saving and high efficiency (efficiency reaches over 96%).



7. One main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.



8. Standard 4G module, charging operation: swipe card / scan code;



9. Payment method: RFID card.





Items Performance Name Remarks
Model Split DC 480kw / 600KW / 720KW / 900KW / 1200KW / 1600KW liquid-cooled charging stack
Dimension of Main Cabinet 2183*1163*1056.4mm H*W*D
Dimension of Split Cabinet 1815*772*508mm H*W*D
AC Input Voltage 380V±15% Three-phase Five-wire System
AC Input Frequency 45Hz~66Hz
Rated Power Pe≤450kW
Output Voltage 200-1000vdc (300-1000vdc constant power)
Output Current 0~600A
Power Factor ≥0.99 50%PO above input condition
Efficiency ≥96% Peak Efficiency
Measuring Method DC ammeter measuring Precision grade: 0.5
Cooling Method Forced air cooling + liquid cooling
Protection Grade IP54
Altitude ≤2000m It will start derating work in case of 50℃ above and stop working in case of 70℃
Working Temperature -20℃~50℃ No condensation
Relative Humidity 5%~95%
Communication Interface 4G, RS485, CAN, Ethernet (Optional)
Installation Method Floor fixed
Starting Method Start swiping card and scanning code
Items Performance of Liquid Cooling gun Parameter Indicator
Electrical Performance Rated Voltage 1000V
Max. Output Current Insulation Resistance 600A
  500MΩ(500VDC)
Charging Interface GB/T20234.3-2015 DC Charging Interface
Charging Gun 600A liquid cooling gun with the wire length of 5m
Mechanical Performance Mechanical Life 10,000 times
Locking Force 200N
Environment Performance Usage Environmental Temperature -35~50℃
Working Temperature -35~90℃
Protection Grade Plug and anti-dust cover: IP54; combination of plug and socket: IP55
Liquid Cooling Cable Max. Cable Length 5m
Outer Diameter of Cable 28mm
Spec. of Power Line 35mm²
Cooling Loop Cooling Liquid 45# transformer oil (not freeze under -45℃)
Outer/Inner Diameter of Liquid Inlet Pipe Φ8/φ6
Loop Characteristics There is set DC+ liquid inlet and DC- liquid outlet, forming the cooling loop
Liquid Cooling Source
Rated Voltage 220VAC
Rated Power 550W
Working Pressure 10bar
Flow Rate 8L/min
Power of Cooling Fan 90W
Noise ≤60 db
Function Cooling liquid working pressure monitoring, cooling liquid flow rate monitoring, cooling liquid temperature monitoring; low temperature alarm, over-temperature alarm, cutoff alarm, cooling liquid over-temperature alarm
Size 550MM*200MM*600MM
Communication Interface RS485
Communication Operation background OCCP
Communication method CAN communication/PLC (customized)
Communication interface Ethernet, GPRS, 4G
Communication protocol

ISO15118/OCCP1.6 (American Standard)

IEC 62196-3 (European standard)

Charging protocol DIN70121
Charging gun standard

CCS Stype1 (American standard)

CCS Stype2 (European standard)

Charging mode IEC 61851 charging mode 4




RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 0
Company Profile

RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 1

RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 2


RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 3






Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 4

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 5

RFID Card Rapid EV Charging Stations 96% Efficiency Ethernet Communication 6



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
