Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: DC-160KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
160KW Commercial EV Charger |
Rated Output Voltage Range: |
300VDC～700VDC |
Adjustable Range Of Current Limiting: |
10%～110%Stepless Adjustable |
Rated Input Voltage: |
380VAC±15% |
Connector: |
EV Charging Cable |
Key Words: |
Charging Station |
Certificate: |
GB/T |
Product Name: |
160KW Commercial EV Charger |
Rated Output Voltage Range: |
300VDC～700VDC |
Adjustable Range Of Current Limiting: |
10%～110%Stepless Adjustable |
Rated Input Voltage: |
380VAC±15% |
Connector: |
EV Charging Cable |
Key Words: |
Charging Station |
Certificate: |
GB/T |

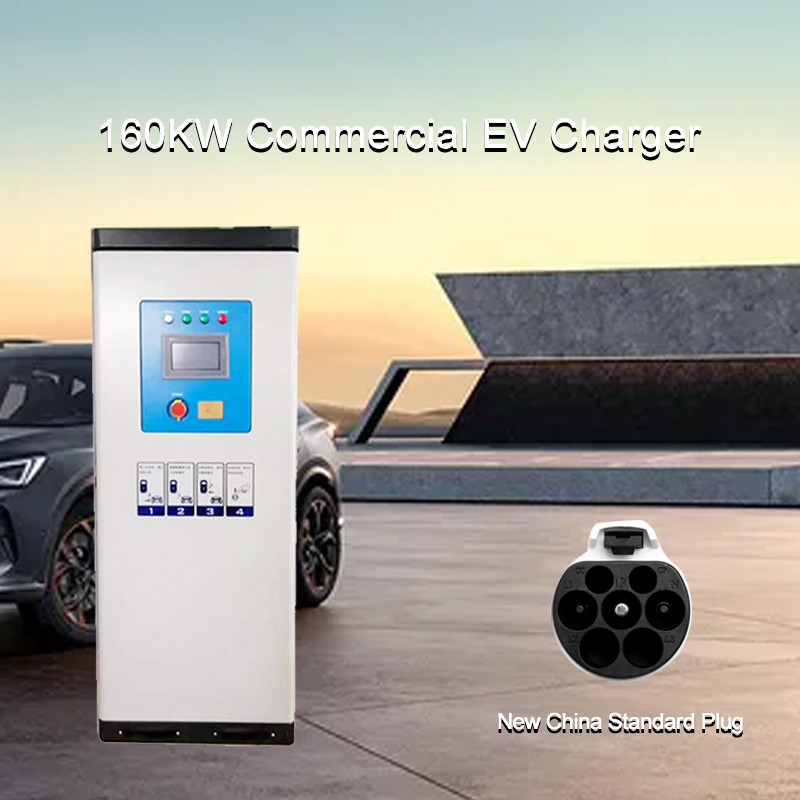

GB/T 160 KW DC Commercial EV Charger Intelligent With Payments IP54 OCPP1.6
Main features
1. High power quality: low harmonic output, high power factor can reduce the pollution to the power grid, higher power grid adaptability.
2. Intelligent: Using CAN bus and power background monitoring system to achieve real-time data exchange, to achieve the purpose of intelligent charging.
3. Perfect protection function: built-in anti-reverse protection, with rich failure self-isolation function fault detection, convenient maintenance.
4. DSP digital control: fewer devices, higher environment stability, higher reliability, more convenient expansion.
5. Lighting facilities: the cabinet is equipped with lighting facilities, and the door switch chain.
Product Parameters
| Product name | Commercial EV Charger | ||
| Input voltage | AC 380V ±10% | ||
| AC power input connection | 3P+N+PE | ||
| Operating Frequency | 50hz | ||
| Power Factor | >0.99 | ||
| Output rated power | 160A | ||
| Output Current | 0-160 | ||
| Current limit adjustable range | 10%~100% | ||
| Current error | ≤1% | ||
| Current accuracy | ≤±1% | ||
| Module Unbalance | ≤5% | ||
| Ripple coefficient | ≤±5% | ||
| Charge gun cable length | 2 guns/guns 7m cable | ||
| Auxiliary power supply | 12V/24V | ||
| Display method | Touch screen | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| mounting method | Floor mounting | ||
| Reference size | 750*460*1680 | ||
Main features
Product Features
1. High degree of intelligence:
Intelligent temperature control, autonomous current sharing, full matrix power intelligent distribution, constant power
The core technology of intelligent control such as charging can realize any module to any charging pile.
2. High reliability:
Using redundant design, all-round detection, active protection and other safety protection measures, the average
Over 30,000 hours of trouble-free time
3. Software and hardware integration:
Provide charging operation management system and APP system, support Chinese, English,
Japanese, etc. Other languages can be customized
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
