Integrated Fast DC EV Charger 380V 3 Phases + N + PE Energy Saving

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: XD-DC-120kw

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

Integrated DC EV Charger

,

380V DC EV Charger

,

N + PE EV Fast Charger

Product Type:
Integrated DC Charger
Product Model:
RSDC1000-120(KW)
Dimension (H*W*D)(mm):
1870*800*542 (120KW/180KW, Main Cabinet);
Display Mode:
7" Color Touch Screen
AC Input Voltage Range (V):
380±15%,3 Phases +N+PE
AC Input Frequency (Hz):
45~66Hz
Power Factor:
≥0.99
Current Harmonics (THDI):
≤5%
Product Type:
Integrated DC Charger
Product Model:
RSDC1000-120(KW)
Dimension (H*W*D)(mm):
1870*800*542 (120KW/180KW, Main Cabinet);
Display Mode:
7" Color Touch Screen
AC Input Voltage Range (V):
380±15%,3 Phases +N+PE
AC Input Frequency (Hz):
45~66Hz
Power Factor:
≥0.99
Current Harmonics (THDI):
≤5%
Integrated Fast DC EV Charger 380V 3 Phases + N + PE Energy Saving

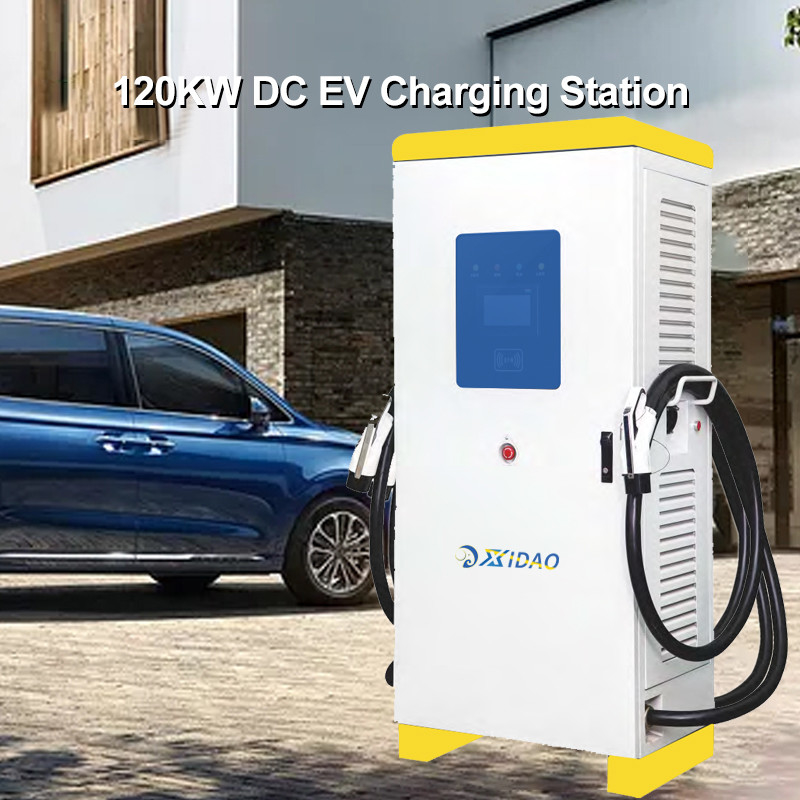

120KW EV Integrated Fast Charger Station 380±15% 3 Phases +N+PE Efficient And Energysaving




Product Highlights

1. Core Competitive ness


It can meet the charging requirements of all vehicle types and different power, and dynamically match the charging power requirements of electric vehicles connected to any terminal; in the future, it can meet the requirements of high power and fast charging speed of electric vehicles, and avoid repeated input caused by equipment upgrading and charging station transformation;


2. Five-gear Switching

Reducing energy consumption and improving the efficiency of charging module make the power distribution more reasonable, power switching more stable and granularity finer.


3. Strong Expansibility
As the rising of battery charging multiplying power, the needs of charging power will be larger and corresponding charging module can be expanded to meet the charging requirement.



4. Intelligent Dispatching

It adopts intelligent charging module, capable of high power, high power density, high power factor, high efficiency, low harmonic, high intelligent degree and other highlights, especially suitable for bus and other electric  vehicles need large-power charging;


5. Flexible Charging
The machine can dynamically allocate the charging power according to the charging requirements sent by the BMS of the vehicle to be charged, thereby improving the efficiency of the charging device.Highly integrated d: It is a highly integrated system connection, cooling control and comprehensive connection integrating power conversion, dynamic power distribution, station monitoring, orderly charging management, new energy power generation and energy storage system;


6. Efficient and  Energysaving
Adopting efficient module, its efficiency is up to 96% above and it can work within the interval of optimal load rate.



Technical parameters


TechTechnical Performance Table of 120KW Fast DC Charger

Product Type

Integrated DC Charger

Product Model

RSDC1000-1200(KW)

Dimension (H*W*D)(mm)

1870*800*542 (120KW/180KW, main cabinet);

Display Mode

7" Color Touch Screen

AC Input Voltage Range (V)

380±15%,3 phases +N+PE

AC Input Frequency (Hz)

45~66Hz

Power Factor

≥0.99

Current Harmonics (THDI)

≤5%

Efficiency

≥96% (full load)

DC Output Voltage Range (V)

200-1000VDC

Output Voltage Range under Constant Power (V)

300-1000VDC

DC Output Current (A)

0~250A (single gun)

Output Power (KW)

60

Length of Charging Gun (m)

5

Noise (dB)

<65

Charging Operation

Swiping card/scanning code

Running Indication

Power supply, charging, fault

Heat Dissipation Control

Air Cooling

BMS Auxiliary Power Supply (V)

12/24

Power Distribution

Equipartition/Intelligent Distribution/Switching

Altitude (m)

≤2000

Working Temperature (℃)

-20~50

Storage Temperature (℃)

-40~70

Average Relative Humidity

5%~95%

Protective Function

Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.

Charging Selection

Automatic, timing, quantitation, fixed fee, appointment etc.

Payment Method

RFID card

Communication Interface

CAN with standard configuration, Ethernet, RS485, RS232, GPRS

Protection Grade / Shell Material

Outdoor IP54 / sheet metal shell

Product Introduction

1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.;
2. Electric-energy acquisition system and charge accounting system provides the records of e arning and spending. IC card and WeChat can be  used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through  indicat or light;
3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light;
4. In case of over-voltage, under-voltage, s hort-circuit, electric leakage and connection fault, the machine will stop charging and alarm through  indicator light;
5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54;
6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware.
