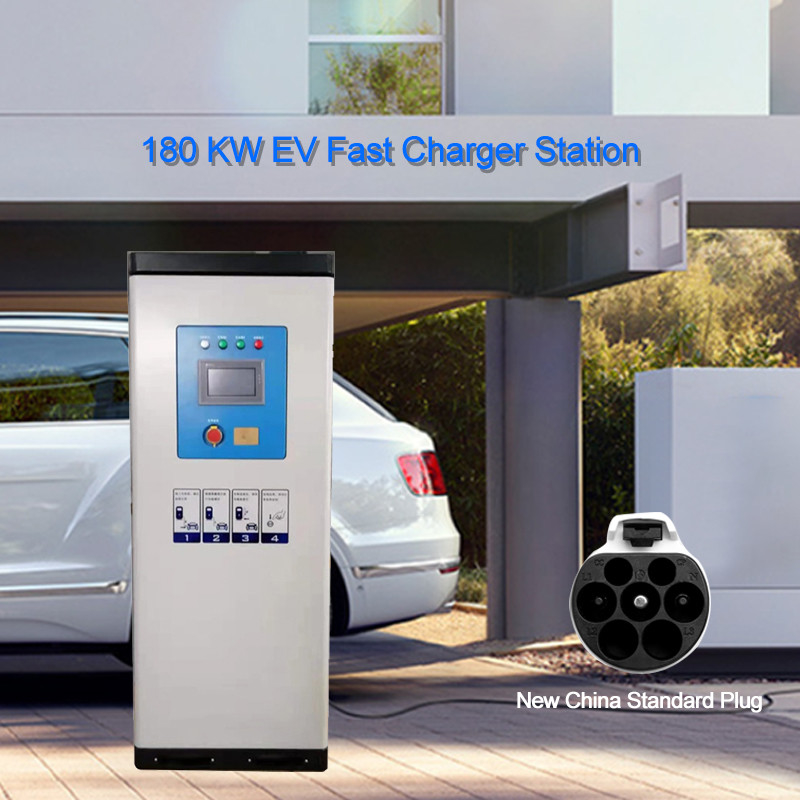

24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB

Model Number: DC-180KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
Highlight:

3P+N+PE EV Fast Charger

,

24V EV Fast Charger

,

180KW high power charging station

Product Name:
180KW DC Fast Charger
Output Power:
180KW
Input Voltage Range:
380V ±15%
Output Voltage:
200~750V
Ripple Effective Value Coefficient:
≤±0.5%
The Output Protection:
Reverse Connection, Overvoltage, Overcurrent, Communication Interruption, Connection Interruption, No Edge
Product Name:
180KW DC Fast Charger
Output Power:
180KW
Input Voltage Range:
380V ±15%
Output Voltage:
200~750V
Ripple Effective Value Coefficient:
≤±0.5%
The Output Protection:
Reverse Connection, Overvoltage, Overcurrent, Communication Interruption, Connection Interruption, No Edge
24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station





180KW DC EV Fast Charger Electric Station For Cars 380V ±15% IP 54 CE





Product Features



Product Features of DC fast charging for electric vehicles



1. High degree of intelligence :
intelligent temperature control, autonomous current equalization, full matrix power intelligent distribution, constant power
charging and other intelligent control core technology, can realize any module to any charging pile.

2. High reliability:
With redundant design, all-round detection, active protection and other safety protection measures, the average
failure-free time exceeds 30,000 hours

3. Software and hardware integration:
Provide charging operation management system and APP system, support Chinese, English,
Japanese, etc., other languages can be customized



Product Parameters



Product name EV Fast Charger
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 180A
Output Current 0-160
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 800*1050*2000



Introduction



Introduction of DC fast chargers for electric vehicles



The charger is professionally designed for the charging needs of lithium power battery electric vehicles. The product adopts modular design, can be used in parallel with multiple modules, and has good fault tolerance. With CAN fieldbus, it can communicate with Battery Management System BMS and power background monitoring system in real time, so as to monitor, protect and optimize the charging process of lithium power battery in an all-round way. The operation interface adopts humanized touch screen, with simple interface and convenient operation.



Details Images



24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 0

24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 1

24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 2

24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 3



Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 4

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 5

24V 3P+N+PE EV Fast Charger 180KW High Power Charging Station 6





FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
