Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: Ac-BG2G-11Kw-QL
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
11KW Car EV Charger |
Input Voltage: |
380vac ± 10% |
Frequency: |
50Hz/60HZ |
Phase: |
3 Phase |
Charging Capacity: |
Up To 7KW |
Operating Temperature: |
'-30 ℃ To 55 ℃ |
Standby Power: |
≤3W |
Product Name: |
11KW Car EV Charger |
Input Voltage: |
380vac ± 10% |
Frequency: |
50Hz/60HZ |
Phase: |
3 Phase |
Charging Capacity: |
Up To 7KW |
Operating Temperature: |
'-30 ℃ To 55 ℃ |
Standby Power: |
≤3W |
Commercial GB/T 11KW 32A AC Car EV Charger Fast Car Charger
Wallbox EV Charger Product Introduction
Metal closed shell, to prevent from fire.
This product is an AC charging pile, which is mainly used for AC slow charging of electric vehicles.
The design of the product is very simple. It offers swipe and plug-and-play charging modes, with
Charging protection function. The equipment adopts industrial design principles, the original factory
The anti-overturning function ensures the safe operation of the equipment. Overall protection level
The device reaches IP65, has good dustproof and waterproof function, and can operate safely
and keep it outdoors.
Product Parameters
| Product name | Car EV Charger | ||
| Product type | Home version | ||
| Input Voltage | 380vac ± 20% | ||
| Frequency | 50Hz/60HZ | ||
| Phase | 3 Phase | ||
| Operating temperature | -30 ℃ to 55 ℃ | ||
| RCD | 30Ma RCD Type A and DC 6Ma function or Type B(optional) | ||
| Standby Power | ≤3W | ||
| Humidity | Max.95%(non-regulating) | ||
| Eenergy Meter | MID certified | ||
| OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | ||
| IP level | IP54,IK10 | ||
| Communication | WIFI / Ethemet / 4G (optional) | ||
| User interface | LED / LCD(3.5) / RFID (mifare iso & IEC 14443A) | ||
| Certificate | CE/EN/IEC 61851-1:2017,EN/IEC 61951-21-2:2018 | ||

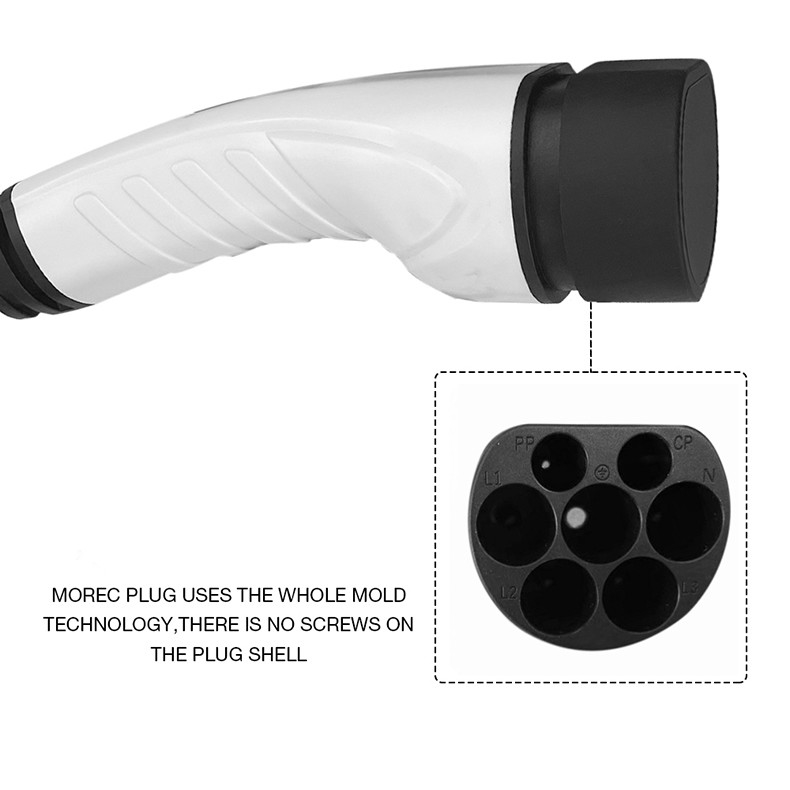

| Charging lnterface | Type 2 socket | ||
| Special Protection | Over current protection; Residual current protection; Ground protection Surge protection; Over/Under voltage protection; | ||
| Special Protection | Over/Under frequency protection; Over/Under temperature protection | ||
| Warranty | 2 years | ||
| Enclosure/Front Panel | Plastic PC940/Galvanized steel/Temper glass | ||
| Product Dimensions | 320*230*100mm | ||
| Net Weight | 5.1KG | ||
Function
Modular design, stable and reliable: Modular design principle is adopted for the equipment, with flexible configuration and convenient maintenance.
All-round protection and safe operation: It has over-voltage protection, under-voltage protection,
overload protection, earth leakage protection, grounding protection, over-temperature protection, low-
temperature protection, lightning protection and toppling protection, ensuring safe and reliable
operation of the equipment and effectively preventing accidents.
Simple structure: Occupying a small space, lightweight, the equipment can be fixed or portable,
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
