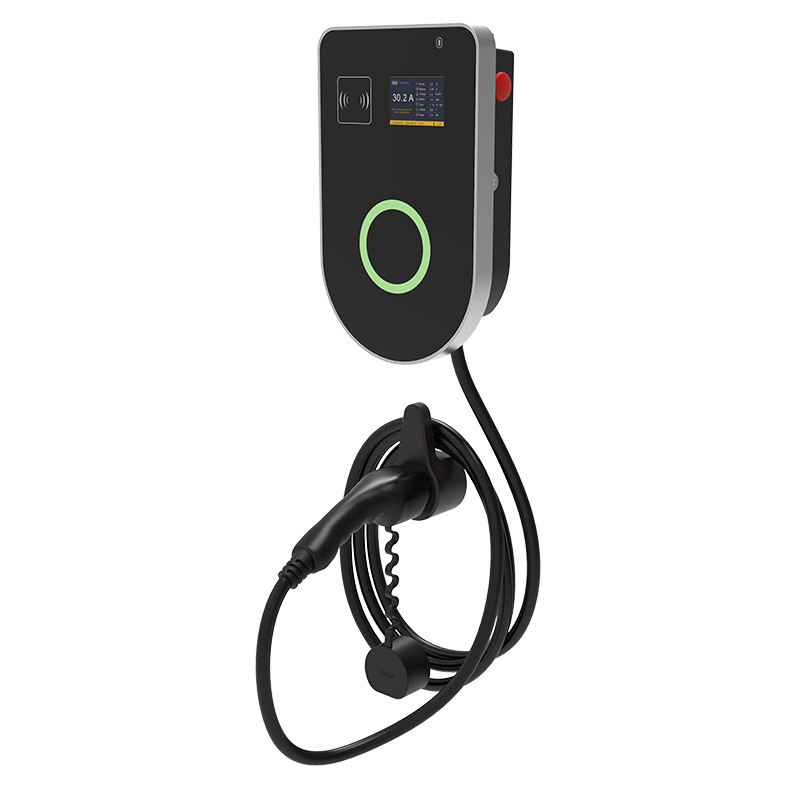

IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: AC-BG-11KW-YL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
Highlight:

IP54 electric vehicle charging equipment

,

16A electric vehicle charging equipment

,

11KW electric car charging station

Product Name:
11KW Car EV Charger
Input Voltage:
230vac ± 20%
Frequency:
50Hz/60HZ
Average Trouble-free Time:
8760 Hours
Charging Capacity:
Up To 11KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
Product Name:
11KW Car EV Charger
Input Voltage:
230vac ± 20%
Frequency:
50Hz/60HZ
Average Trouble-free Time:
8760 Hours
Charging Capacity:
Up To 11KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1





Home 11KW 16A Car EV Charger Station Smart Fast Charging IP54 IEC 61851-1





Product Introduction



The AC commercial charging station integrates functions such as control, management, query and display, and has the advantages of reliability, flexibility, convenience,and speed, It is widely used in public parking lots, residential parking lots and other small and medium-sized electric vehicle charging places.



Product Parameters



Product name Car EV Charger
Product type Home
Input Voltage 220vac ± 20%
Frequency 50Hz/60Hz
Output voltage range 230V±10%
Rated output current 32A
Charge gun length 5M
Average trouble-free time 8760 hours
Working Temperature `-30℃~+55℃
Humidity of working environment 5%~95%
Altitude ≤2000M
IP level IP55
Atmospheric pressure intensity 50kPa-110kPa
Energy Meter MID certified
OCPP OCPP1.6 Json
Communication WIFI/Ethemet/4G(Optional)
User interface LED/LCD(3.5* )/ RFID (mifare iso& IEC 14443A)
Charging interface Type 2 socket
Special Protection Over current protection, Residual current protection, Ground protection,sur protection, Over/Under voltage protection, Over/Your ¡ency protection Over/Under temperature protection
Product Dimensions 320*230*100(L*W*H)mm



Function



• Smart: The mobile phone APP provides functions such as search, navigation, query, and appointment of charging.
• Seflient: Support services such as swiping cards and mobile apps
• System: Advanced cloud fast charging platform system, providing big data monitoring



Details Images



IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1 0

IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1 1

IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1 2

IP54 16A Electric Vehicle Charging Equipment Station 11KW IEC 61851-1 3



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
