Home > products > Car EV Charger > GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger

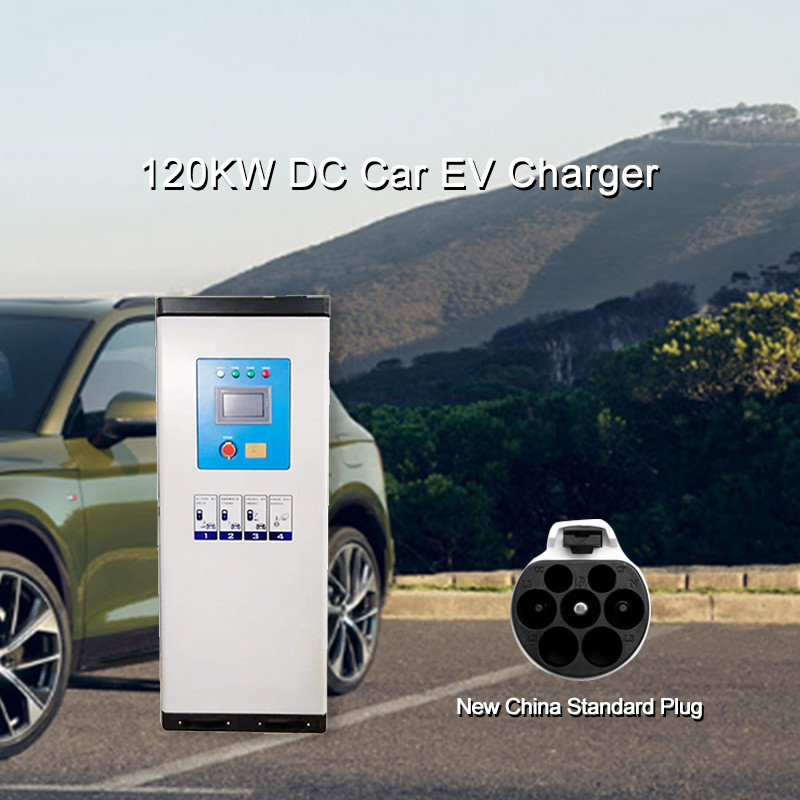

GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB/T

Model Number: DC-120KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

GB/T outdoor car charging point

,

CAN communication outdoor car charging point

,

120KW Dc Fast Ev Charger

Product Name:
120KW Car EV Charger
Voltage Regulation Accuracy:
≤±0.5%
>94%:
≤±1%
Communication Interface:
The CAN Communication
Efficiency:
>94%
Key Words:
Charging Station
Certificate:
GB/T 18487-2015, GB/T20234, GB/T27930-2015
Product Name:
120KW Car EV Charger
Voltage Regulation Accuracy:
≤±0.5%
>94%:
≤±1%
Communication Interface:
The CAN Communication
Efficiency:
>94%
Key Words:
Charging Station
Certificate:
GB/T 18487-2015, GB/T20234, GB/T27930-2015
GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger





GB/T 18487-2015 120KW Outdoor Commercial DC Car EV Charger Station





Product Features



1. High efficiency: the efficiency is as high as 94%, which can save users' electricity consumption and reduce heat loss
2. High power density: small size, save space, adapt to the development direction of future chargers
3. Input high pressure shock resistance: greatly improve the reliability of the system.
4. Modular design: Multiple modules work in parallel, with strong fault tolerance. The failure of one module does not affect the use of the whole machine, and it is convenient to maintain and replace a single module.
5. Four charging in one machine: There are four DC charging interfaces. Under the control of the charging process, the DC output is automatically switched and has the function of power distribution.



Features



Features of DC EV fast charger



1. High security
2. Efficient operation
3. Flexible charging
4. Strong adaptability
5. Rich monitoring information
6. Flexible billing function
7. High openness
8. Perfect fault self-test prompt



Product Parameters



Product name Car EV Charger
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 120A
Output Current 0-120
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 750*460*1680



Applications



Applications of DC EV Fast Charger



This EV DC fast voltage charging station is suitable for large electric bus terminals, expressway service areas, and electric vehicle charging, providing DC fast charging for all types of electric vehicles.



Details Images

GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 0

GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 1

GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 2

Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 3

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 4

GB/T Outdoor Car Charging Point 120KW Dc Fast EV Charger 5



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
