Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: DC-30KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
30KW DC Car EV Charger |
Output Voltage: |
200~750V |
Communication: |
Ethernet/4G/wifi |
Rated Output: |
30kW |
Adjustable Range Of Current Limiting: |
10%～110%Stepless Adjustable |
Frequency: |
50Hz±1Hz |
IP Grade: |
IP 54 |
Product Name: |
30KW DC Car EV Charger |
Output Voltage: |
200~750V |
Communication: |
Ethernet/4G/wifi |
Rated Output: |
30kW |
Adjustable Range Of Current Limiting: |
10%～110%Stepless Adjustable |
Frequency: |
50Hz±1Hz |
IP Grade: |
IP 54 |

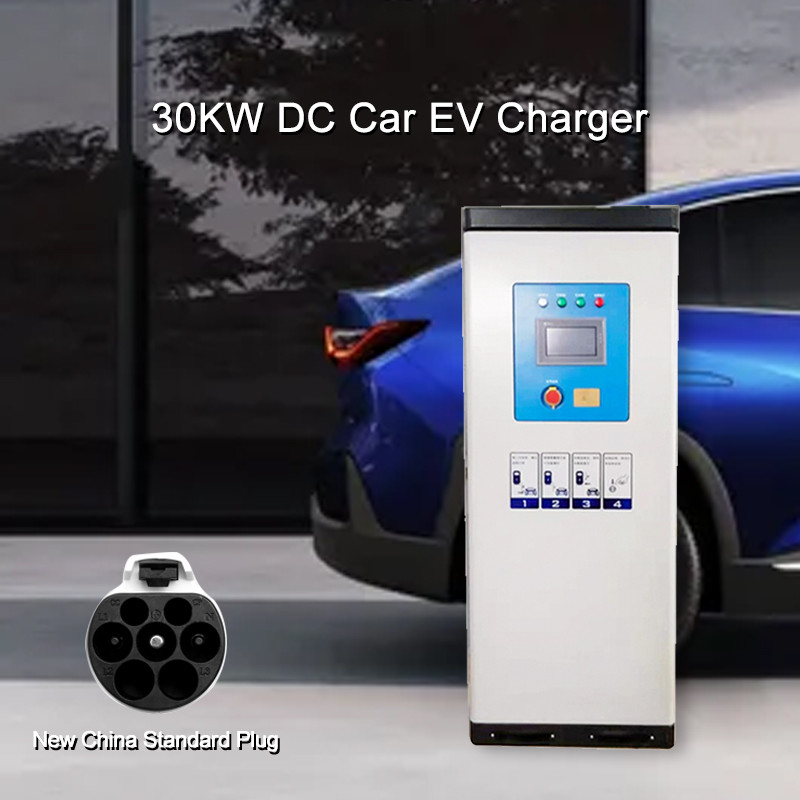

Commercial Charging Station For Outdoor GB/T 30KW DC Car EV Charger
Features
1. Connection protection, shutdown protection and human-machine interface operation authority protection.
2. Reduce energy loss, in line with energy saving and emis- sion reduction requirements, saving electricity costs for customers
3. A variety cf control modes to facilitate maintenance and related experiments, a variety of cherging modes to meet the different needs of customers
4.Low input harmonics - reduce pollution to the grid, higher grid adaptability Wide input voltage, wide output voltage range - suitable
for most different input and output voltage situations.
5. Wide operating temperature range-/de operating tempe- rature range to meet most harsh working environments Hol-swappable-suitable for easy use and reduced mainte- nance costs
6. Real-time display of communication, charging operation and battery status through HMI
7. Flexible billing function Multiple billing methods and time-of-day billing to meet customers' diversfied charging needs
Product Parameters
| Product name | Car EV Charger | ||
| Input voltage | AC 380V ±10% | ||
| AC power input connection | 3P+N+PE | ||
| Operating Frequency | 50hz | ||
| Power Factor | >0.99 | ||
| Output rated power | 30A | ||
| Output Current | 0-30 | ||
| Current limit adjustable range | 10%~100% | ||
| Current error | ≤1% | ||
| Current accuracy | ≤±1% | ||
| Module Unbalance | ≤5% | ||
| Ripple coefficient | ≤±5% | ||
| Charge gun cable length | 2 guns/guns 7m cable | ||
| Auxiliary power supply | 12V/24V | ||
| Display method | Touch screen | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| mounting method | Floor mounting | ||
| Reference size | 800*1050*2000 | ||
Main features
Main features of DC fast chargers for electric vehicles
1. High efficiency
2. High power density
3. Input high voltage shock resistance
4. Modular design
5. One machine with four charging functions
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
