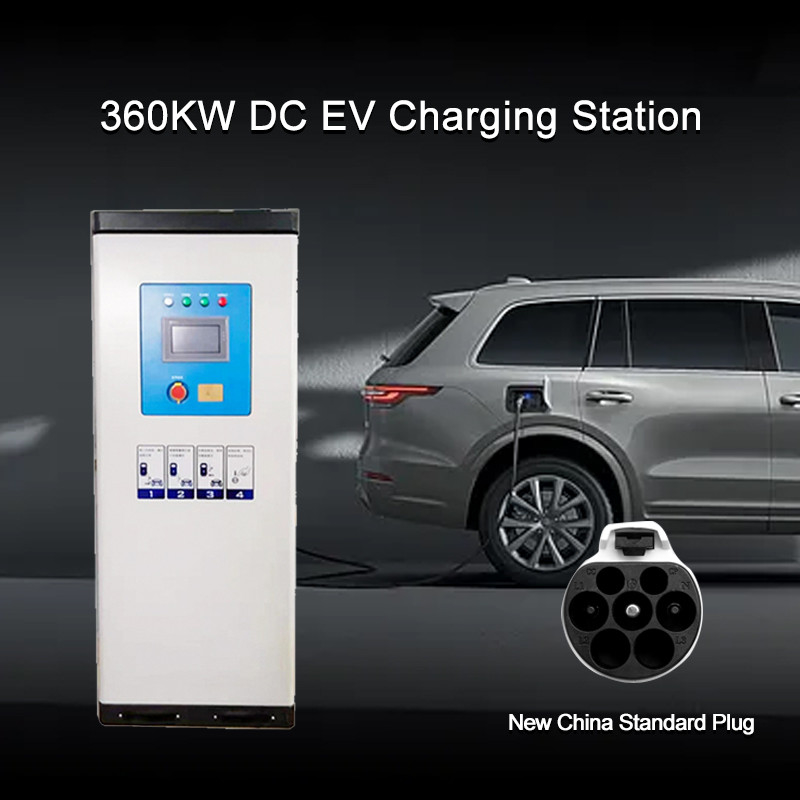

GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB

Model Number: DC-360KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

GB/T DC EV Charging Station

,

360KW DC EV Charging Station

,

single gun level 3 ev charger

Product Name:
360KW DC EV Charging Station
Scram Button:
The Whole Power Supply Can Be Cut Off In An Emergency
Touch Screen:
Man-machine Interface
Charging Gun:
A Gun/ B Gun
Communication Interface:
The CAN Communication
Efficiency:
>94%
IP Grade:
IP 54
Certificate:
GB/T 18487-2015, GB/T20234, GB/T27930-2015
Product Name:
360KW DC EV Charging Station
Scram Button:
The Whole Power Supply Can Be Cut Off In An Emergency
Touch Screen:
Man-machine Interface
Charging Gun:
A Gun/ B Gun
Communication Interface:
The CAN Communication
Efficiency:
>94%
IP Grade:
IP 54
Certificate:
GB/T 18487-2015, GB/T20234, GB/T27930-2015
GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger





GB/T 360KW Fast DC EV Charging Station 18487-2015 20234 27930-2015





Product Features



1. High efficiency: the efficiency is as high as 94%, which can save users' electricity consumption and reduce heat loss
2. High power density: small size, save space, adapt to the development direction of future chargers
3. Input high pressure shock resistance: greatly improve the reliability of the system.
4. Modular design: Multiple modules work in parallel, with strong fault tolerance. The failure of one module does not affect the use of the whole machine, and it is convenient to maintain and replace a single module.
5. Four charging in one machine: There are four DC charging interfaces. Under the control of the charging process, the DC output is automatically switched and has the function of power distribution.



Product Parameters



Product name EV Fast Charger
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 360A
Output Current 0-360
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 800*1050*2000



product description



This EV DC fast charging pile adopts high frequency switching rectifier module, adjustable DC output voltage, DSP digital control, resonant soft switching, and active PFC technology. 50-500V wide output voltage range, and 12V and 24V auxiliary power adaption.



Details Images



GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger 0

GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger 1

GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger 2



In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger 3

GB/T 360KW DC EV Charging Station Single Gun Level 3 EV Charger 4





FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
