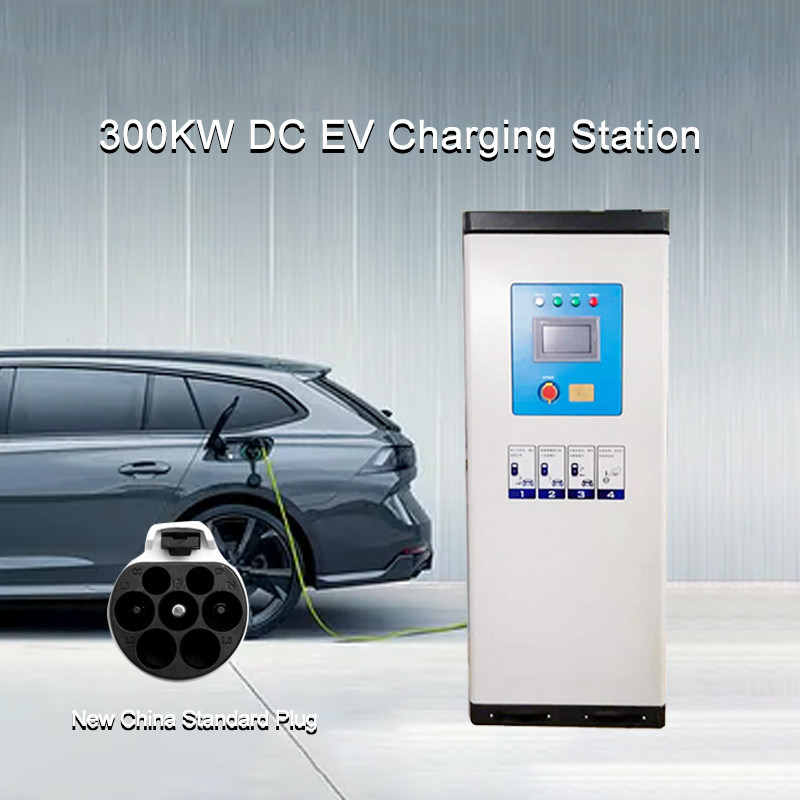

300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB

Model Number: DC-300KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

300KW DC EV Charging Station

,

RS485 DC EV Charging Station

,

IP54 business electric car charging point

Product Name:
300KW DC EV Charging Station
Output Voltage:
200~750V
Auxiliary Power:
12V/24V
Output Power:
300KW
Input Voltage Range:
380V ±15%
Cooling Method:
Forced Air Cooling
IP Grade:
IP54
Communication Protocols:
RS485/CAN/ Ethernet/4G
Product Name:
300KW DC EV Charging Station
Output Voltage:
200~750V
Auxiliary Power:
12V/24V
Output Power:
300KW
Input Voltage Range:
380V ±15%
Cooling Method:
Forced Air Cooling
IP Grade:
IP54
Communication Protocols:
RS485/CAN/ Ethernet/4G
300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point





300KW Commercial DC EV Charging Station For Cars RS485/CAN/ Ethernet/4G





Product Features



1. Connection confirmation function
The charger is only allowed to start charging after it is detected that the charging tip is properly connected to the gun holder.
2. Communication function
The charger has the function of communicating with the battery management system of the electric vehicle. After the handshake with the battery management system of the electric vehicle is successful
BMS, obtain electric vehicle cell charging parameters and real-time charging data, and dynamically adjust the output according to the power
Real-time demand for BMS. System charging parameters and charging real-time data, and dynamically adjust the output
According to BMS real-time demand.
3. Human-computer interaction function
Color LCD touch screen
4. A variety of charging methods
Timing charging, constant power charging, quantitative charging, automatic charging
5. Protection and alarm function
Input overvoltage, undervoltage, short circuit, overtemperature protection; output overvoltage, overcurrent, short circuit
Protection; insulation and grounding protection; soft start time (3S~8S), reverse battery protection; contact
Abnormal protection; emergency stop protection; alarm and display.
6. Insulation grounding protection test
The DC stack design meets the requirements of GB/T 18487.1-2015, the insulation resistance > 500Ω/V is safe; 100Ω/V < insulation
Insulation resistance ≤ 500Ω/V is an abnormal insulation alarm; insulation resistance ≤ 100Ω/V is regarded as insulation
fails and stops charging.
7. Emergency stop
Press the emergency stop button, the entire charging pile is powered off
8. Remote Communication
Ability to communicate with backend monitoring via Ethernet
9. Recording storage function
The charger has an alarm record storage function, which can store historical charging consumption letters.
10. Meet the standards
IEC/EN61851, IEC/EN62196



Product Parameters



Product name DC EV Charging Station
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 300A
Output Current 0-300
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 800*1050*2000



Introduction



The charger is professionally designed for the charging needs of lithium power battery electric vehicles. The product adopts modular design, can be used in parallel with multiple modules, and has good fault tolerance. With CAN fieldbus, it can communicate with Battery Management System BMS and power background monitoring system in real time, so as to monitor, protect and optimize the charging process of lithium power battery in an all-round way. The operation interface adopts humanized touch screen, with simple interface and convenient operation.



Details Images



300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point 0

300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point 1

300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point 2

300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point 3



300KW RS485 DC EV Charging Station IP54 Business Electric Car Charging Point 4





FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
