Home > products > Commercial EV Charger > 300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun

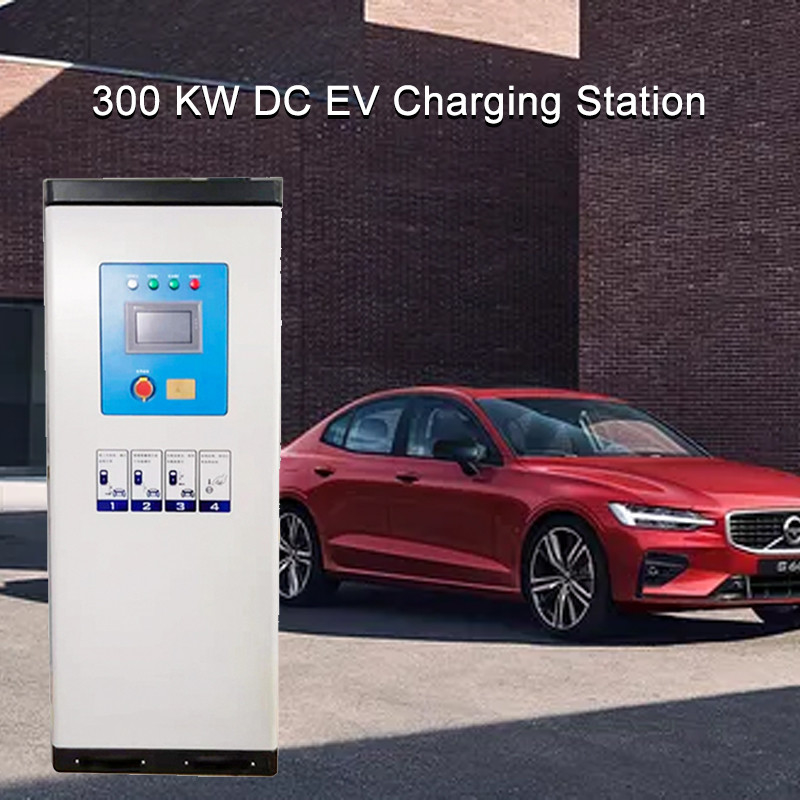

300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: DC-300KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

300 Kilowatt DC EV Charging Station

,

12V DC EV Charging Station

,

Touch screen mobile dc fast charger

Product Name:
300 KW DC EV Charging Station
Output Voltage:
200~750V
Work Frequency:
50Hz±1Hz
Output Power:
300KW
Input Voltage Range:
380V ±15%
Operation Temperature:
-35 ℃-+50 ℃
IP Grade:
IP 54
Adjustable Range Of Current Limiting:
10%~110% Stepless Adjustable
Product Name:
300 KW DC EV Charging Station
Output Voltage:
200~750V
Work Frequency:
50Hz±1Hz
Output Power:
300KW
Input Voltage Range:
380V ±15%
Operation Temperature:
-35 ℃-+50 ℃
IP Grade:
IP 54
Adjustable Range Of Current Limiting:
10%~110% Stepless Adjustable
300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun





300 Kilowatt Fast Commercial DC EV Charging Station For Cars IP54 lCD





Product Features



1. High degree of intelligence:
Intelligent temperature control, autonomous current sharing, full matrix power intelligent distribution, constant power
The core technology of intelligent control such as charging can realize any module to any charging pile.

2. High reliability:
Using redundant design, all-round detection, active protection and other safety protection measures, the average
Over 30,000 hours of trouble-free time

3. Software and hardware integration:
Provide charging operation management system and APP system, support Chinese, English,
Japanese, etc. Other languages can be customized



Product Parameters



Product name DC EV Charging Station
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 300A
Output Current 0-300
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 800*1050*2000



Main features



Main features of DC fast chargers for electric vehicles



1. High power quality: low harmonic output, high power factor can reduce the pollution to the power grid, higher power grid adaptability.

2. Intelligent: Using CAN bus and power background monitoring system to achieve real-time data exchange, to achieve the purpose of intelligent charging.

3. Perfect protection function: built-in anti-reverse protection, with rich failure self-isolation function fault detection, convenient maintenance.

4. DSP digital control: fewer devices, higher environment stability, higher reliability, more convenient expansion.

5. Lighting facilities: the cabinet is equipped with lighting facilities, and the door switch chain.



Details Images











Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun 0

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun 1

300 Kilowatt DC EV Charging Station Touch Screen 7m Cable Gun 2





FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
