Product Details
Place of Origin: Sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC1000-120KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
120KW Commecial DC EV Charger CCS2 |
AC Input Voltage: |
380V±15% |
Output Voltage And Current: |
DC200～1000V;0～200A(Single Gun) |
Output Power: |
120KW Double Gun, 60KW Single Gun |
Communication Interface: |
4G, RS485, CAN, Ethernet (optional) |
Efficiency: |
≥96%(full Load) |
Protection Level: |
IP54 IK10/1.5mm Sheet Metal Shell |
Display Model: |
7" Color Touch Screen |
Product Name: |
120KW Commecial DC EV Charger CCS2 |
AC Input Voltage: |
380V±15% |
Output Voltage And Current: |
DC200～1000V;0～200A(Single Gun) |
Output Power: |
120KW Double Gun, 60KW Single Gun |
Communication Interface: |
4G, RS485, CAN, Ethernet (optional) |
Efficiency: |
≥96%(full Load) |
Protection Level: |
IP54 IK10/1.5mm Sheet Metal Shell |
Display Model: |
7" Color Touch Screen |

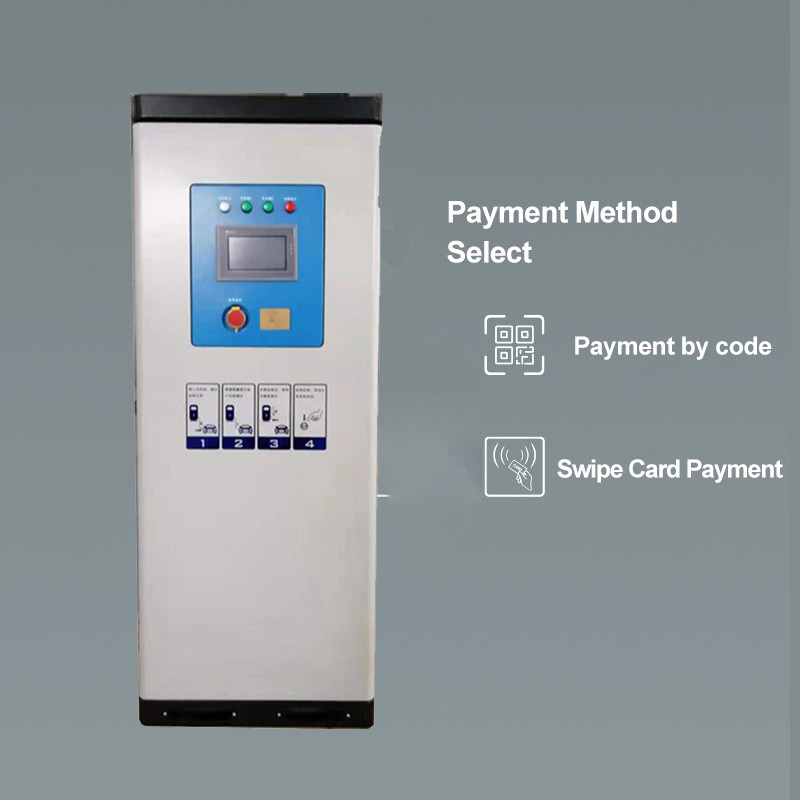

CCS2 120KW CE Certificate Commercial EV DC Charger LCD Display OCPP1.6 Ethernet Wifi 4G With Payments
CE Certificate
Product Features
a. 1.5mm sheet metal material outer case enables longer durability.
b. 200V-1000V ultra/wide range charging.
c. dynamically allocate charging power according to the charging requirements to avoid tripping
d. High-efficiency module with a high power factor and efficiency of more than 96%
Product Parameters
| Project | Parameter index | Remarks |
| Model |
XD-DC1000-120kW-EU
|
|
| Dimensions | 1866.5x715x559mm | height*width*depth |
| AC input voltage | 380V±15% | Three-phase five-wire system |
| AC input frequency | 45Hz～65Hz | |
| rated power | 120kW | |
| The output voltage | DC200～1000V(300-1000V constant power) | |
| Output current | 0～200A | |
| power factor | ≥0.99 | Output condition above 50% P0 |
| efficiency | ≥96% | peak efficiency |
| Measurement method | DC metering | Accuracy class 0.5 |
| cooling method | forced air cooling | |
| Protection class | IP54 | |
| Operating temperature | -20℃～50℃ | Derating work above 50℃, stop working at 70℃ |
| Relative humidity | ≤95 % | no condensation |
| Communication Interface | 4G, RS485, CAN, Ethernet (optional) | |
| Installation method | floor-mounted fixed | |
| Start method | Scan code to start |
Company Profile
Besides providing our EV chargers to our customers, Xiangdao Technology also provides application development services, if you are interested in developing a unique charging app for your own charging pile, do not hesitate to send us a message to request detailed information and start turning your ideas into reality
Since 2004, our company has been dedicated to developing applications to provide the best service to various customers, our 20 years of experience in application development allows us to be one of the best and most experienced companies in China.
Our quality software product has been used by many clients in retail, distribution, and VIP account management.
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales, and operation of new energy, including EV charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc. We are committed to providing total solutions for the application of new energy technologies.
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
