Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC-600KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Type: |
Split DC Charging Stack |
AC Input Voltage Range: |
380V±15%, 3-phase +N+PE, 480V +/-10% |
AC Input Frequency: |
45～66Hz |
Power Factor:: |
≥0.99 |
Current Harmonics (THDI): |
≤5% |
Efficiency: |
45~66Hz |
Power Factor: |
≥0.99 |
Product Type: |
Split DC Charging Stack |
AC Input Voltage Range: |
380V±15%, 3-phase +N+PE, 480V +/-10% |
AC Input Frequency: |
45～66Hz |
Power Factor:: |
≥0.99 |
Current Harmonics (THDI): |
≤5% |
Efficiency: |
45~66Hz |
Power Factor: |
≥0.99 |

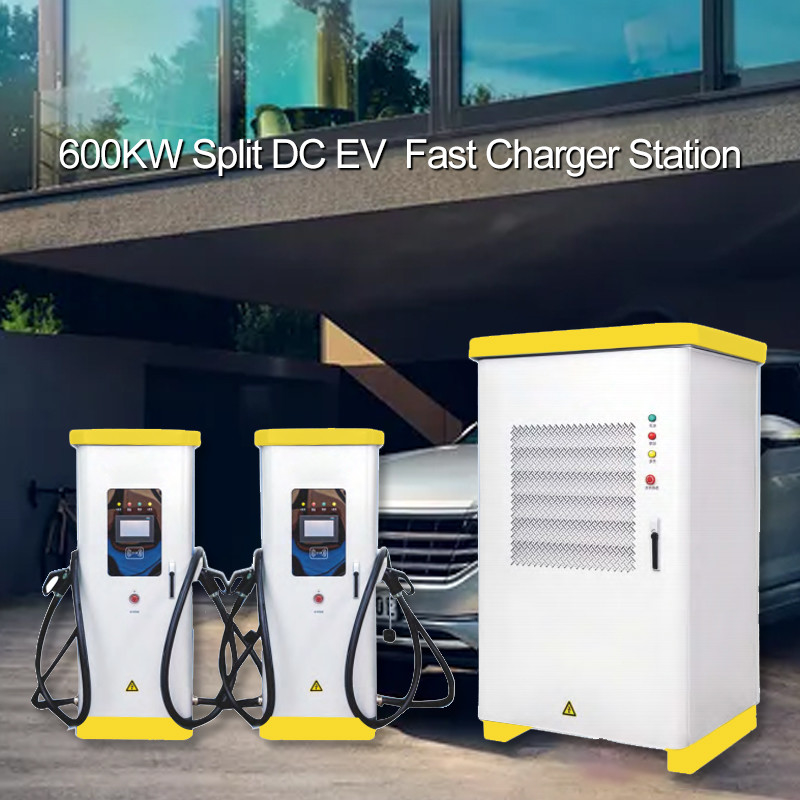

600KW Split DC EV Fast Charger Station Standard Application: One Drag Ten
Product Highlights
1. Meet the charging requirements of various models and different powers, and dynamically match the required charging power for electric vehicles connected to any terminal; in the future, it can meet the needs of high-power fast charging of electric vehicles, avoiding equipment upgrades or charging. Duplicate inputs from station re-construction;
2. Matrix-type flexible charging stack: based on power unit matrix control, a split charging station facility built with a fully digital intelligent charging module as the core to achieve rapid deployment: The matrix-type flexible charging stack is centralized and pre-installed, and can be Save a lot of on-site installation and commissioning time and shorten the construction period;
4. Adopt intelligent charging module, which has the advantages of high power, high efficiency, low harmonics, and high intelligence, especially suitable for high-power charging of electric vehicles in public transportation;
5. According to the charging demand issued by the BMS of the charging vehicle, dynamically allocate the charging power, thereby improving the utilization rate of the charging equipment and realizing highly integrated management;
6. Strong scalability, energy saving and high efficiency.
7. Multiple cabinets can be selected (single gun and double gun combination) to meet different operational needs.
8. Charging operation: swipe card/scan code;
9. Payment method: RFID card;
Standard application: one drag ten
Standard power distribution: 60/120/180KW
Module: 30KW
Technical parameters
| AC input voltage range: | 380V±15%, 3-phase+N+PE, 480V +/-10% |
| AC input frequency: | 45～66Hz |
| Power Factor: | ≥0.99 |
| Current Harmonics (THDI): | ≤5% |
| efficiency: | ≥96% (full load) |
| DC output voltage range: | 200～1000Vdc |
| Constant power output voltage range (V): | 300～1000Vdc |
| Main cabinet DC output current (A): | 0～900A/ 0～1800A; |
| Running noise: | <65dB |
| Running instructions: | power, charging, failure |
| Thermal Control: | forced air cooling |
| Altitude (m): | ≤2000m |
| Operating temperature: | -20～50℃ |
| storage temperature: | -40～70℃ |
| Average relative humidity: | 5%～95% |
| Operation background: | OCCP |
| way of communication: | CAN communication/PLC (customized) |
| Communication Interface: | Ethernet, GPRS, 4G |
| letter of agreement: | ISO15118/OCCP1.6 (American Standard) IEC 62196-3 (European Standard) |
| Charging protocol: | DIN70121 |
| Charging gun standard: | CCS Stype1 (American Standard)/CCS Stype2 (European Standard) |
| Charging Mode: | IEC 61851 Charge Mode 4 |
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
