Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: CE
Model Number: DC-300KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
300K W DC Fast Charger |
Output Voltage: |
200~750V |
Work Frequency: |
50Hz±1Hz |
Output Power: |
300KW |
Input Voltage Range: |
380V ±15% |
Operation Temperature: |
-35 ℃-+50 ℃ |
IP Grade: |
IP 54 |
Adjustable Range Of Current Limiting: |
10%～110% Stepless Adjustable |
Product Name: |
300K W DC Fast Charger |
Output Voltage: |
200~750V |
Work Frequency: |
50Hz±1Hz |
Output Power: |
300KW |
Input Voltage Range: |
380V ±15% |
Operation Temperature: |
-35 ℃-+50 ℃ |
IP Grade: |
IP 54 |
Adjustable Range Of Current Limiting: |
10%～110% Stepless Adjustable |

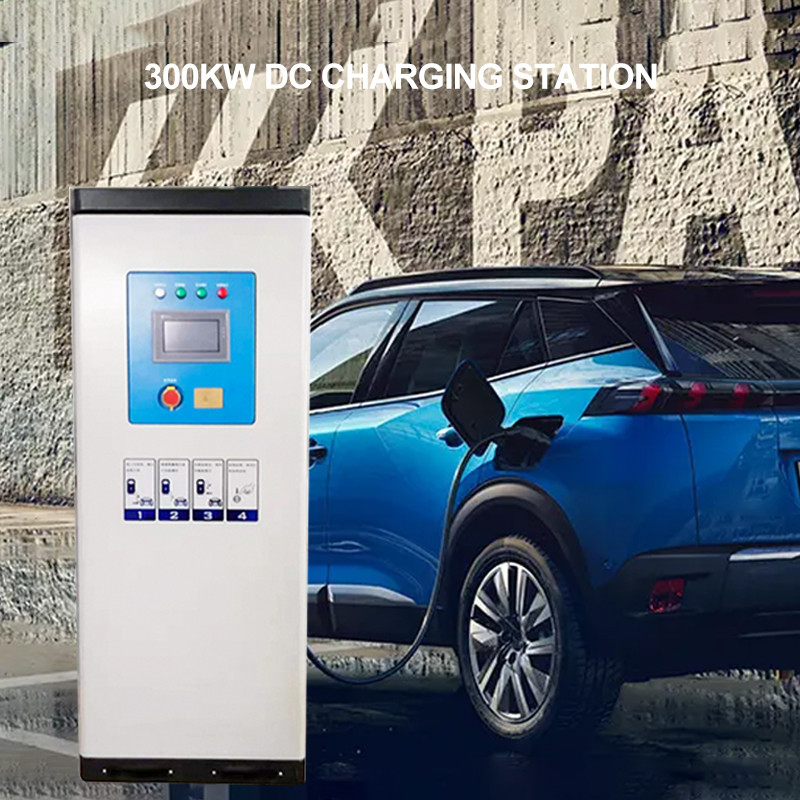

DC 300 Kilowatt Commercial Electric Cars Fast Charging Station For Cars
Product Features
1. High degree of intelligence:
Intelligent temperature control, autonomous current sharing, full matrix power intelligent distribution, constant power
The core technology of intelligent control such as charging can realize any module to any charging pile.
2. High reliability:
Using redundant design, all-round detection, active protection and other safety protection measures, the average
Over 30,000 hours of trouble-free time
3. Software and hardware integration:
Provide charging operation management system and APP system, support Chinese, English,
Japanese, etc. Other languages can be customized
Product Parameters
| Product name | EV Fast Charger | ||
| Input voltage | AC 380V ±10% | ||
| AC power input connection | 3P+N+PE | ||
| Operating Frequency | 50hz | ||
| Power Factor | >0.99 | ||
| Output rated power | 300A | ||
| Output Current | 0-300 | ||
| Current limit adjustable range | 10%~100% | ||
| Current error | ≤1% | ||
| Current accuracy | ≤±1% | ||
| Module Unbalance | ≤5% | ||
| Ripple coefficient | ≤±5% | ||
| Charge gun cable length | 2 guns/guns 7m cable | ||
| Auxiliary power supply | 12V/24V | ||
| Display method | Touch screen | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| mounting method | Floor mounting | ||
| Reference size | 800*1050*2000 | ||
Main features
Main features of DC fast chargers for electric vehicles
1. High power quality: low harmonic output, high power factor can reduce the pollution to the power grid, higher power grid adaptability.
2. Intelligent: Using CAN bus and power background monitoring system to achieve real-time data exchange, to achieve the purpose of intelligent charging.
3. Perfect protection function: built-in anti-reverse protection, with rich failure self-isolation function fault detection, convenient maintenance.
4. DSP digital control: fewer devices, higher environment stability, higher reliability, more convenient expansion.
5. Lighting facilities: the cabinet is equipped with lighting facilities, and the door switch chain.
