Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: DC-CG-250V-LT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
1000V EV Charging Sockets |
Rated Current: |
125A DC |
Withstand Voltage: |
3000V 1Min |
Operating Temperature: |
-30℃~+50℃ |
Flame Retardant Rating: |
UL 94V-0 |
Protection Level: |
IP55 |
Plug Life: |
10000 Times |
Product Name: |
1000V EV Charging Sockets |
Rated Current: |
125A DC |
Withstand Voltage: |
3000V 1Min |
Operating Temperature: |
-30℃~+50℃ |
Flame Retardant Rating: |
UL 94V-0 |
Protection Level: |
IP55 |
Plug Life: |
10000 Times |

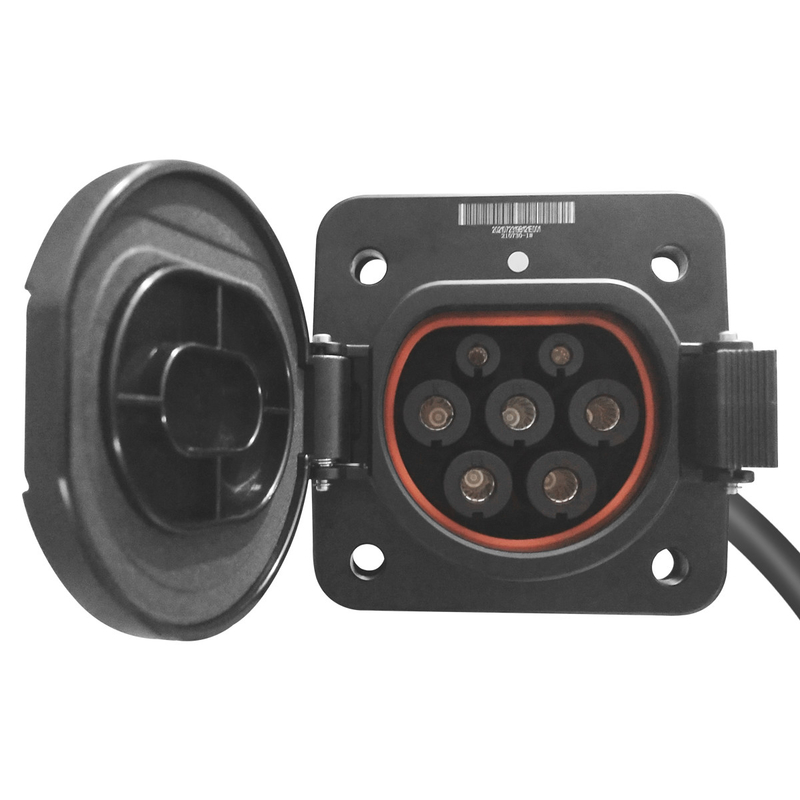

GB/T 20234 750V 125A DC EV Charging Socket 2*35mm²+1*25mm²+2*4mm² Cable
Applications
Don't operate the EVSE in temperatures beyond its operating range of -30°C to 55°C.
Don't put fingers into the charging connector when the power plug is still connecting to the power.
Don't use this device with an extension cord or adaptor.
DC charging socket
Product Parameters
| Rated voltage: | 750/1000V DC |
| Rated current: | 80A/125A/200A/250A |
| Insulation resistance: | ≥5M (DC 500V ) |
| Withstand voltage: | 3000V 1Min. |
| Operating temperature | :-30°~+50° |
| Thermoplastic material. | |
| Flame retardant rating | UL 94V-0 |
| Copper alloy for pins | |
| Protection level: | IP55 |
| Plug life: | 10000 times |
| The plugging force between the plug gun and the socket should be less than 100N | |
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
