Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: DC-CG-250V-LT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
750V EV Charging Sockets |
Rated Current: |
80A DC |
Withstand Voltage: |
3000V 1Min |
Operating Temperature: |
-30℃~+50℃ |
Flame Retardant Rating: |
UL 94V-0 |
Protection Level: |
IP55 |
Plug Life: |
10000 Times |
Product Name: |
750V EV Charging Sockets |
Rated Current: |
80A DC |
Withstand Voltage: |
3000V 1Min |
Operating Temperature: |
-30℃~+50℃ |
Flame Retardant Rating: |
UL 94V-0 |
Protection Level: |
IP55 |
Plug Life: |
10000 Times |
GB/T 20234 750V 80A DC EV Charging Socket 2*25mm²+1*16mm²+2*2.5mm² Cable
Applications
EV Cable length: 3m, 5m, 10m or customized EV Portable Charger
Color of EV Charging Cord : Orange ,Green and Black.

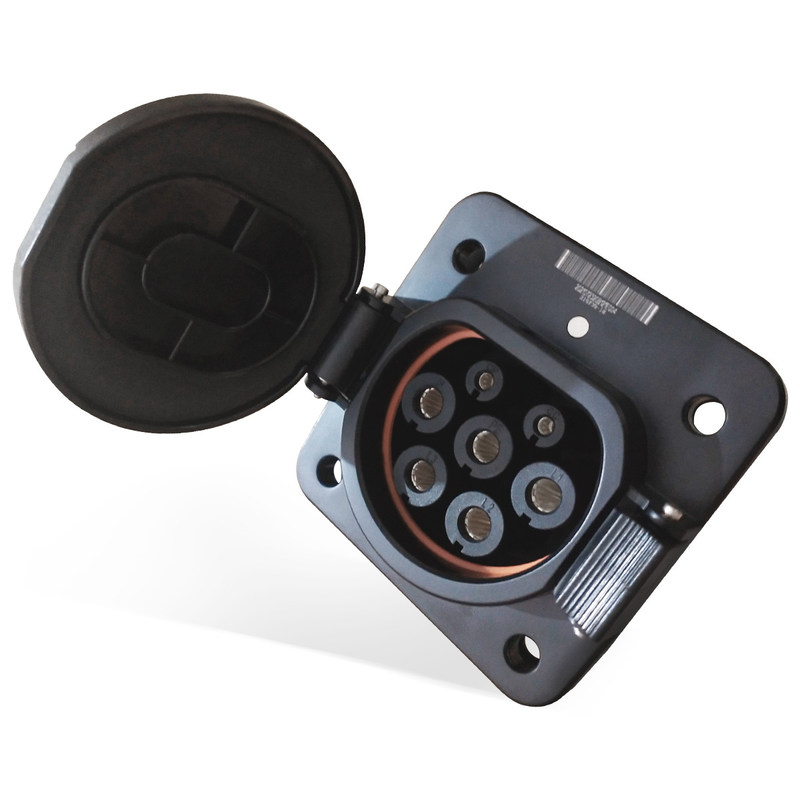

DC charging socket
Product Parameters
| Rated voltage: | 750/1000V DC |
| Rated current: | 80A/125A/200A/250A |
| Insulation resistance: | ≥5M (DC 500V ) |
| Withstand voltage: | 3000V 1Min. |
| Operating temperature | :-30°~+50° |
| Thermoplastic material. | |
| Flame retardant rating | UL 94V-0 |
| Copper alloy for pins | |
| Protection level: | IP55 |
| Plug life: | 10000 times |
| The plugging force between the plug gun and the socket should be less than 100N | |
