Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC1000-120KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
120KW DC Commercial EV Charger |
AC Input Voltage: |
380V±15% |
Output Voltage And Current: |
200～1000V;0～200A |
Output Power: |
Double Gun 120KW |
Communication Interface: |
Ethernet/Wifi/4G |
Protection Level: |
IP54 IK10 |
Certificate: |
CE |
Product Name: |
120KW DC Commercial EV Charger |
AC Input Voltage: |
380V±15% |
Output Voltage And Current: |
200～1000V;0～200A |
Output Power: |
Double Gun 120KW |
Communication Interface: |
Ethernet/Wifi/4G |
Protection Level: |
IP54 IK10 |
Certificate: |
CE |

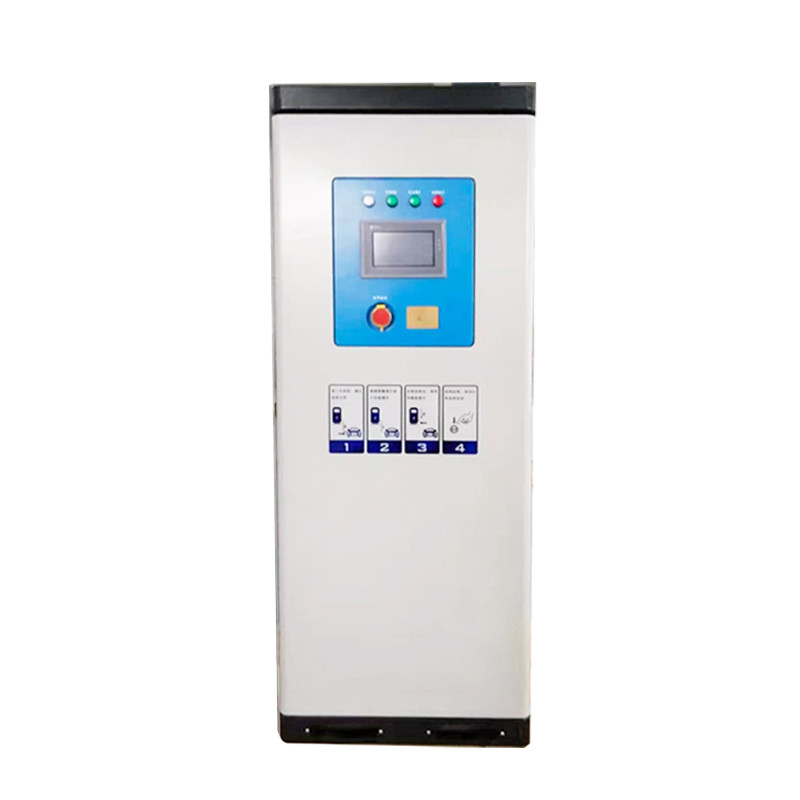

120KW DC Commercial EV Charger OCPP 1.6 Ethernet Wifi 4G
DC fast charging piles are suitable for installation in urban fast charging stations , transportation hub charging stations, highway charging stations , etc. it has the charactenistics of efficient charging. safety and time saving.
Features
1.connection protection, shutdown protection and human-machine interface operation authority protection.
2. Reduce energy loss, in line with energy saving and emis- sion reduction requirements, saving electricity costs for customers
3. A variety cf control modes to facilitate maintenance and related experiments, a variety of cherging modes to meet the different needs of customers
4.Low input harmonics - reduce pollution to the grid, higher grid adaptability Wide input voltage, wide output voltage range - suitable
for most different input and output voltage situations.
5. Wide operating temperature range-/de operating tempe- rature range to meet most harsh working environments Hol-swappable-suitable for easy use and reduced mainte- nance costs
6. Real-time display of communication, charging operation and battery status through HMI
7. Flexible billing function Multiple billing methods and time-of-day billing to meet customers' diversfied charging needs
Product Parameters
| Project | Parameter index | Remarks |
| Model |
XD-DC1000-120kW-EU
|
|
| Dimensions | 1866.5x715x559mm | height*width*depth |
| AC input voltage | 380V±15% | Three-phase five-wire system |
| AC input frequency | 45Hz～65Hz | |
| rated power | 120kW | |
| The output voltage | DC200～1000V(300-1000V constant power) | |
| Output current | 0～200A | |
| power factor | ≥0.99 | Output condition above 50% P0 |
| efficiency | ≥96% | peak efficiency |
| Measurement method | DC metering | Accuracy class 0.5 |
| cooling method | forced air cooling | |
| Protection class | IP54 | |
| Operating temperature | -20℃～50℃ | Derating work above 50℃, stop working at 70℃ |
| Relative humidity | ≤95 % | no condensation |
| Communication Interface | 4G, RS485, CAN, Ethernet (optional) | |
| Installation method | floor-mounted fixed | |
| Start method | Scan code to start |
Details Images
