Product Details
Place of Origin: sichuan
Brand Name: Xidao
Model Number: XD-DC1000-30KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
30KW Commercial EV DC Charger GB/T |
AC Input Voltage Range (V): |
380±15%, 3 Phases +N+PE |
DC Output Voltage Range (V): |
200-1000VDC |
Output Power: |
30KW |
Communication Interface: |
Ethernet, RS485, RS232, GPRS,WIFI |
Protection Grade: |
IP54 |
Display Mode: |
4.3" Color Touch Screen |
Product Name: |
30KW Commercial EV DC Charger GB/T |
AC Input Voltage Range (V): |
380±15%, 3 Phases +N+PE |
DC Output Voltage Range (V): |
200-1000VDC |
Output Power: |
30KW |
Communication Interface: |
Ethernet, RS485, RS232, GPRS,WIFI |
Protection Grade: |
IP54 |
Display Mode: |
4.3" Color Touch Screen |

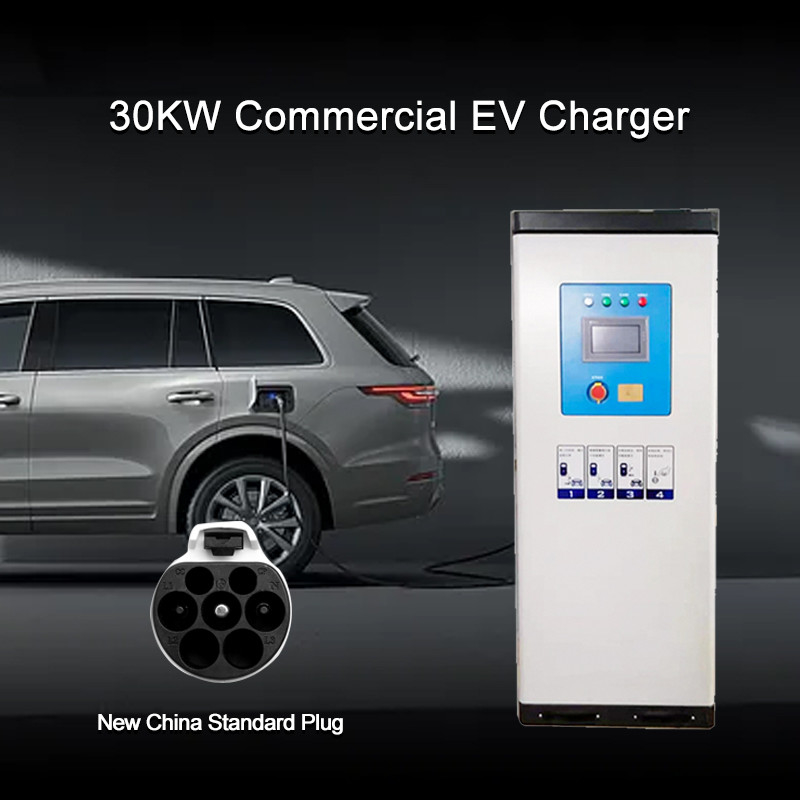

GB/T 30KW Outdoor Commercial DC EV Charger IP54
Features
1. connection protection, shutdown protection and human-machine interface operation authority protection.
2. Reduce energy loss, in line with energy saving and emis- sion reduction requirements, saving electricity costs for customers
3. A variety cf control modes to facilitate maintenance and related experiments, a variety of cherging modes to meet the different needs of customers
4. Low input harmonics - reduce pollution to the grid, higher grid adaptability Wide input voltage, wide output voltage range - suitable
for most different input and output voltage situations.
5. Wide operating temperature range-/de operating tempe- rature range to meet most harsh working environments Hol-swappable-suitable for easy use and reduced mainte- nance costs
6. Real-time display of communication, charging operation and battery status through HMI
7. Flexible billing function Multiple billing methods and time-of-day billing to meet customers' diversfied charging needs
8. Provide charging operation management system and APP system, support Chinese, English, Japanese, etc. Other languages can be customized
Product Parameters
| Product name | Commercial EV Charger | ||
| Input voltage | AC 380V ±10% | ||
| AC power input connection | 3P+N+PE | ||
| Operating Frequency | 50hz | ||
| Power Factor | >0.99 | ||
| Output rated power | 30A | ||
| Output Current | 0-30 | ||
| Current limit adjustable range | 10%~100% | ||
| Current error | ≤1% | ||
| Current accuracy | ≤±1% | ||
| Module Unbalance | ≤5% | ||
| Ripple coefficient | ≤±5% | ||
| Charge gun cable length | 2 guns/guns 7m cable | ||
| Auxiliary power supply | 12V/24V | ||
| Display method | Touch screen | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| mounting method | Floor mounting | ||
| Reference size | 800*1050*2000 | ||
Main features
1. High efficiency
2. High power density
3. Input high voltage shock resistance
4. Modular design
5. One machine with four charging functions
Company Profile
Besides providing our EV chargers to our customers, Xiangdao Technology also provides application development services, if you are interested in developing a unique charging app for your own charging pile, do not hesitate to send us a message to request detailed information and start turning your ideas into reality
Since 2004, our company has been dedicated to developing applications to provide the best service to various customers, our 20 years of experience in application development allows us to be one of the best and most experienced companies in China.
Our quality software product has been used by many clients in retail, distribution, and VIP account management.
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales, and operation of new energy, including EV charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc. We are committed to providing total solutions for the application of new energy technologies.
In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
