Product Details
Place of Origin: Sichuan
Brand Name: Xidao
Certification: CE
Model Number: AC-BG1-11W
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
Wall-mounted/Column Dual-purpose AC Charger |
Inpur Frequency: |
45~55HZ |
Display Mode: |
LED Display |
Charging Protocol: |
DIN70121 |
Charging Operation: |
Swiping Card/Scanning Code |
Way Of Communication: |
CAN Communication/PLC (customized) |
Letter Of Agreement: |
ISO15118/OCCP1.6(American Standard) IEC 62196-3 (European Standard) |
Output Current: |
16 |
Product Name: |
Wall-mounted/Column Dual-purpose AC Charger |
Inpur Frequency: |
45~55HZ |
Display Mode: |
LED Display |
Charging Protocol: |
DIN70121 |
Charging Operation: |
Swiping Card/Scanning Code |
Way Of Communication: |
CAN Communication/PLC (customized) |
Letter Of Agreement: |
ISO15118/OCCP1.6(American Standard) IEC 62196-3 (European Standard) |
Output Current: |
16 |
1. Stable and reliable modular design: The equipment follows the modular design principle, allowing for flexible setup and simple maintenance.
2. Complete protection, safe operation: includes dumping protection, overvoltage protection, undervoltage protection, overload protection, leakage protection, grounding protection, overtemperature protection, low temperature protection, and protection from lightning.
Effectively prevent accidents while operating the equipment.
3. Simple to use: quick to install and operate.
7KW Home Electric Vehicle Fast Charging Station Wallbox Module Of Charging
Product performance
Product Parameters
| Product name | Wallbox EV Charger | ||
| Product type | Home version | ||
| Shell material | Black tempered glass panel, PC body | ||
| Equipment dimension | 310*161*79.8mm (L*W*H) | ||
| Wiring method | Getting in and going out from the bottom | ||
| Equipment weight | <6kg | ||
| Gun length | 5m | ||
| Input voltage | 380V | ||
| Input frequency | 50Hz | ||
| Max. power | 11KW | ||
| Output voltage | 380V | ||
| Output current | 16A | ||
| Applicable scene | Indoor / Outdoor | ||
| Operating temperature | -30℃ ~ +55℃ | ||
| Operating humidity | 5% ~ 95%, without condensation | ||
| Height above sea level | <2000m | ||
| Protection level | IP65 | ||
| Cooling method | Natural cooling | ||
| Safety certification | IEC 61851-2017/IEC62196-2:2016 | ||
| MTBF | 100,000 hours | ||
| Special protection | UV protection design | ||
| Safety design | Over-voltage protection, under-voltage protection, overload protection, earth leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection |
||
Product Introduction

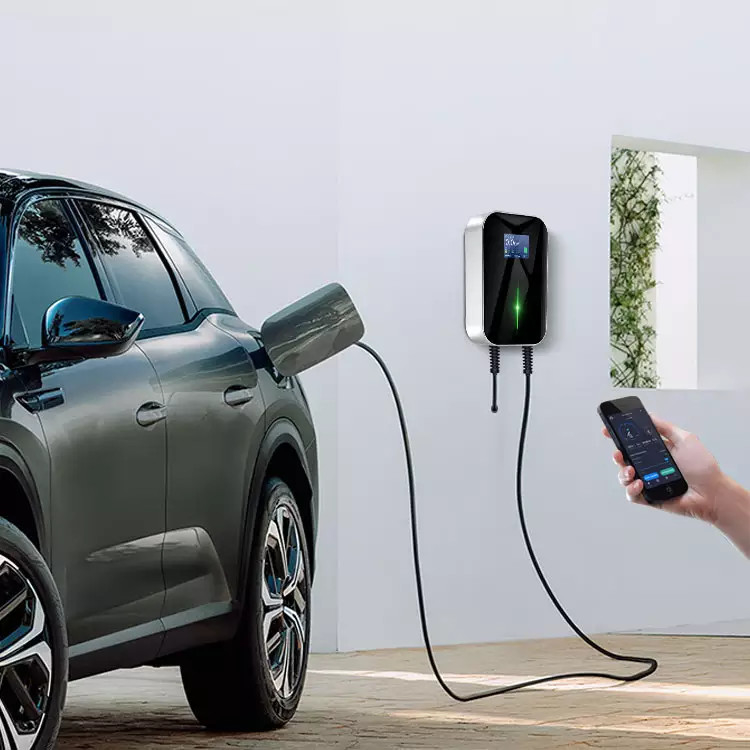

A single-phase AC charging pile, this device is mostly utilized for AC slow charging of electric automobiles.
The product has an extremely straightforward design. It offers plug-and-play charging and card swiping options, along with a charging protection feature. The equipment is designed using the industrial design philosophy, and its toppling protection feature serves as its primary safety feature. The entire piece of equipment is protected to an IP65 level, has good dustproofing and waterproofing capabilities, and can be used and maintained securely outside.
Details Images
For futher information, please send us a message, we will be glad to help!(^-^)
Xiangdao Technology is dedicated to the electric vehicle charging business, including charging station construction planning, charging pile hardware equipment, charging platform software, and other total solutions. We have advanced technology development techniques. Our advanced technology allows us to produce Commercial DC EV chargers from 30KW to 400KW, and also we are able to produce liquid cooling super DC chargers at the power from 480KW to 1600KW.
NOTE:
1. Support for OEM.
2. Please get in touch with us to discuss any requirements in more detail.
3- We will respond to your query ASAP.
4- Please get in touch with us if you have any inquiries concerning the charger.
5- Please get in touch with us to acquire the accurate cost; the above is simply for reference. The final pricing is determined by the charger KW.
