Home > products > Wall Box EV Charger > 7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire

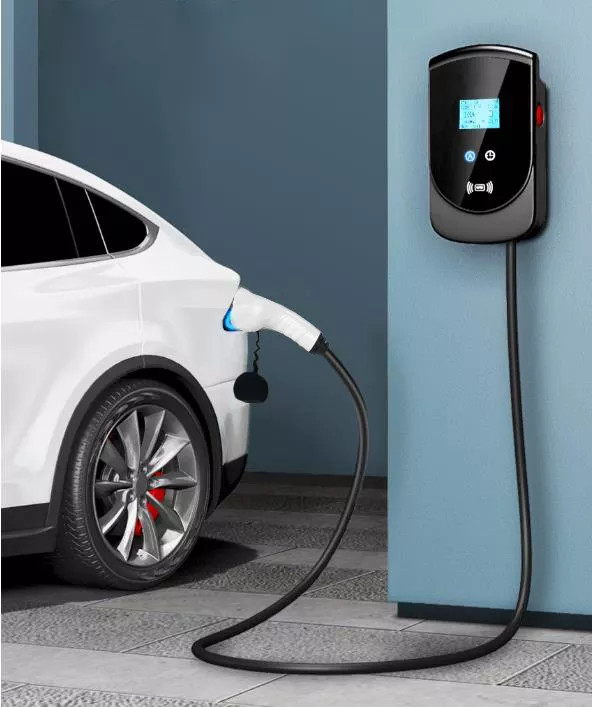

7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire

Product Details

Place of Origin: Sichuan

Brand Name: Xidao

Certification: CE

Model Number: AC-BG2-7W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

380V wallbox electric car charger

,

wallbox electric car 11KW

,

11KW EV charger Overvoltage protection

Product Name:
Wall-mounted/Column Dual-purpose AC Charger
Input Voltage:
215V
Type:
Type 2 Or Type 1
Frequency:
45~66Hz
Output Power:
7KW
Communication Interface:
Ethernet, GPRS, 4G
Display Mode:
LED
Protection:
Overvoltage And Undervoltage Protection, Etc.
Product Name:
Wall-mounted/Column Dual-purpose AC Charger
Input Voltage:
215V
Type:
Type 2 Or Type 1
Frequency:
45~66Hz
Output Power:
7KW
Communication Interface:
Ethernet, GPRS, 4G
Display Mode:
LED
Protection:
Overvoltage And Undervoltage Protection, Etc.
7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire

1. Stable and reliable modular design: The equipment follows the modular design principle, allowing for flexible setup and simple maintenance.

2. Complete protection, safe operation: includes dumping protection, overvoltage protection, undervoltage protection, overload protection, leakage protection, grounding protection, overtemperature protection, low temperature protection, and protection from lightning.
Effectively prevent accidents while operating the equipment.

3. Simple to use: quick to install and operate.





7KW Home Electric Vehicle Fast Charging Station Wallbox Module Of Charging



Product performance







Product Parameters



Product name Wallbox EV Charger
Product type Home version
Shell material Black tempered glass panel, PC body
Equipment dimension 310*161*79.8mm (L*W*H)
Wiring method Getting in and going out from the bottom
Equipment weight <6kg
Gun length 5m
Input voltage 380V
Input frequency 50Hz
Max. power 11KW
Output voltage 380V
Output current 16A
Applicable scene Indoor / Outdoor
Operating temperature -30℃ ~ +55℃
Operating humidity 5% ~ 95%, without condensation
Height above sea level <2000m
Protection level IP65
Cooling method Natural cooling
Safety certification IEC 61851-2017/IEC62196-2:2016
MTBF 100,000 hours
Special protection UV protection design
Safety design Over-voltage protection, under-voltage protection, overload protection, earth leakage
protection, grounding protection, over-temperature protection, low-temperature
protection, lightning protection





Product Introduction



A single-phase AC charging pile, this device is mostly utilized for AC slow charging of electric automobiles.
The product has an extremely straightforward design. It offers plug-and-play charging and card swiping options, along with a charging protection feature. The equipment is designed using the industrial design philosophy, and its toppling protection feature serves as its primary safety feature. The entire piece of equipment is protected to an IP65 level, has good dustproofing and waterproofing capabilities, and can be used and maintained securely outside.



Details Images



7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire 0



7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire 1



7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire 2

7KW 215V Wallbox Charger Dual Purpose AC Charger insulated electrical wire 3



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
