Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: SAE J1772
Model Number: XD-AC-7KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Type: |
7KW AC Charger |
Product Model: |
RSAC220-7KW |
Dimension (H*W*D)(mm): |
315 * 200*92.5 |
Display Mode: |
LED Display |
Input Voltage: |
220VAC, 1 Phase + N+PE |
Output Power (KW): |
7 |
AC Input Voltage (V): |
220VAC±15% |
Product Type: |
7KW AC Charger |
Product Model: |
RSAC220-7KW |
Dimension (H*W*D)(mm): |
315 * 200*92.5 |
Display Mode: |
LED Display |
Input Voltage: |
220VAC, 1 Phase + N+PE |
Output Power (KW): |
7 |
AC Input Voltage (V): |
220VAC±15% |

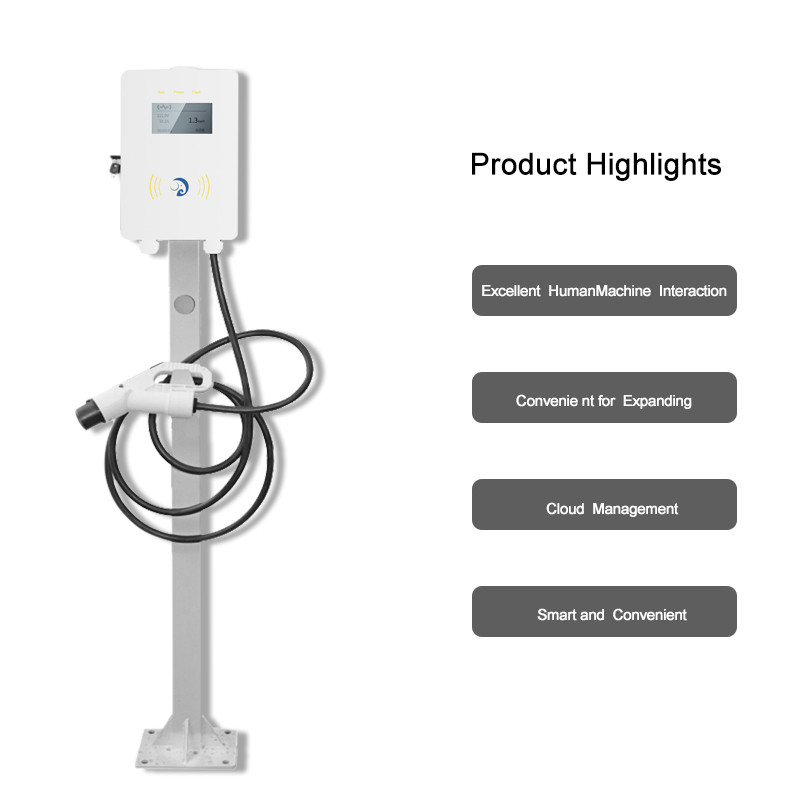

SAE J1772 7KW Electric Vehicle Home Charger Supports Post and Wall Mounting
Product Highlights
1. Multiple Installation Methods
It supports two installation methods: pillar type and wall-mounting type
2. Convenie nt for Expanding
Strong expansibility and support 4G wireless communication
3. Smart and Convenient
Precise measuring, high protection grade, no noise, convenient for installation and maintenance
4. Excellent Human-Machine Interaction
4.3" full color touch screen, more friendly human-machine interactive interface
5. Cloud Management
Support cloud management. It provides more controllable and more thoughtful charging operational management solution for client
| TechTechnical Performance Table of 7KW AC Charger | |
| Product Type | 7KW AC Charger |
| Product Model | RSAC220-7KW |
| Dimension (H*W*D)(mm) | 315 * 200*92.5 |
| Display Mode | LED Display |
| Input Voltage | 220VAC, 1 phase + N+PE |
| Output Power (KW) | 7 |
| AC Input Voltage (V) | 220VAC±15% |
| Input Frequency (HZ) | 45~55Hz |
| Output Voltage (V) | 220VAC |
| Max. Output Current (A) | 32 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing; hanger |
| Product Introduction |
1. 7KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2. Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And env ironment, with the waterproof and dust-proof grade up to IP54; 4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
