OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: XD-P-EU-AC-1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

OCPP1.6 EV Charging Controller

,

32A EV Charging Controller

,

4G CE EV Charging Controller

Product Name:
XD-P-EU-AC-1
Working Frequency:
45-65Hz
Output Voltage Range:
Synchronize With Input
Rated Output Current:
16A/32A
Output Rating:
Single-phase 3.5Kw / 7kW Three-phase 11kW / 22kW
Measuring Accuracy:
Onboard Metering Level 2.0
Standby Power Consumption:
Offline: 5W Networking: 10W
Product Name:
XD-P-EU-AC-1
Working Frequency:
45-65Hz
Output Voltage Range:
Synchronize With Input
Rated Output Current:
16A/32A
Output Rating:
Single-phase 3.5Kw / 7kW Three-phase 11kW / 22kW
Measuring Accuracy:
Onboard Metering Level 2.0
Standby Power Consumption:
Offline: 5W Networking: 10W
OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB





CE EV Charger PCB 1 Phase 3 Phase OCPP1.6 Optional 4G WIFI Bluetooth





V15 series controllers fully meet the European/US standard export certification. The AC charge controller is divided into charging board and communication board, compatible with single-phase and th ree-phase, with integrated relay on board, external charging gun, light board, card reader and display, easy and convenient to use. The series controllers are equipped with different software versio ns for plug-and-charge, card charging, offline e-purse, network charging and other charging pile functions. The controller is equipped with Ethernet interface as standard and can support OCPP1.6 pro tocol. In addition, an optional 4G, WIFI and Bluetooth module can be added to the controller for additional communication.

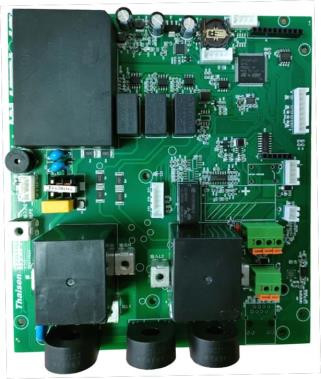

OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB 0



Product Parameters



model hardware function Software function (optional)
V15- R1 basic charge Single phase 7KW Ethernet communication (standard) 1. Plug and charge (optional screen); 2. Swipe card to charge (with or without screen); 3. Credit card charging + appointment charging (with or without screen) 4. OCPP1.6
V15- R2 basic charge Three-phase 22KW Ethernet communication (standard) 1. Plug and charge (optional screen); 2. Swipe the card to charge (with or without screen); 3. Credit card charging + appointment charging (with or without screen) 4. OCPP1.6
  4G communication (optional) Support CAT1, CAT4 and foreign versions
  WIFI communication (optional)
Bluetooth communication (optional)
Card reader (optional)
Light board (optional/customizable)
Leakage module A+6 (optional) AC 30mA + DC 6mA
Input voltage range 110VAC±20% single phase 220VAC±20% single phase 380VAC±20% three-phase
working frequency 45-65Hz
Output voltage range Synchronize with input
rated output current 16A/32A
output rating Single-phase 3.5Kw / 7kW three-phase 11kW / 22kW
measuring accuracy Onboard metering level 2.0
Standby power consumption Offline: 5W networking: 10W
Orderly charging possess
Automatic reconnection wake up   possess
Basic protection function Overunderpressure / overcurrent protection / overtemperature / surge protection / grounding protection / adhesion protection;
earth leakage protection External A + DC6, DC6, or type B electric leakage module
working temperature -40℃~+55℃
Storage temperature -40℃~+85℃
environment humidity ≤95% no condensation
display mode LED lamp (standard), LCD (optional)
Network way 4G (optional), WIFI (optional), graffiti WIFI (optional)
communicating protocol OCPP1.6
Bluetooth Optional



Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB 1

OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB 2

OCPP1.6 Communicating Protocol EV Charging Controller 32A 4G LED Lamp PCB 3



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
