Home > products > Charger Accessories > 66Hz Scan Code DC Charging Station of 96% High Efficiency And Energy Saving

66Hz Scan Code DC Charging Station of 96% High Efficiency And Energy Saving

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: XD-DC-480KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

96% Energy Saving DC Charging Station

,

66Hz DC Charging Station

,

Scan Code EV DC Charging Station

Product Number:
DC 480KW Charging Station
Product Type:
Split DC Charging Station
Dimensions(H*W*D)(MM):
2183*1163*1056.4 (main Cabinet), 1670*692*392 (sub-cabinet)
Display Method:
7 Inch Color Touch Screen
AC Input Voltage Range (V):
380±15%, 3phase+N+PE
AC Input Frequency (Hz):
45~66Hz
Power Factor:
≥0.99
Product Number:
DC 480KW Charging Station
Product Type:
Split DC Charging Station
Dimensions(H*W*D)(MM):
2183*1163*1056.4 (main Cabinet), 1670*692*392 (sub-cabinet)
Display Method:
7 Inch Color Touch Screen
AC Input Voltage Range (V):
380±15%, 3phase+N+PE
AC Input Frequency (Hz):
45~66Hz
Power Factor:
≥0.99
66Hz Scan Code DC Charging Station of 96% High Efficiency And Energy Saving

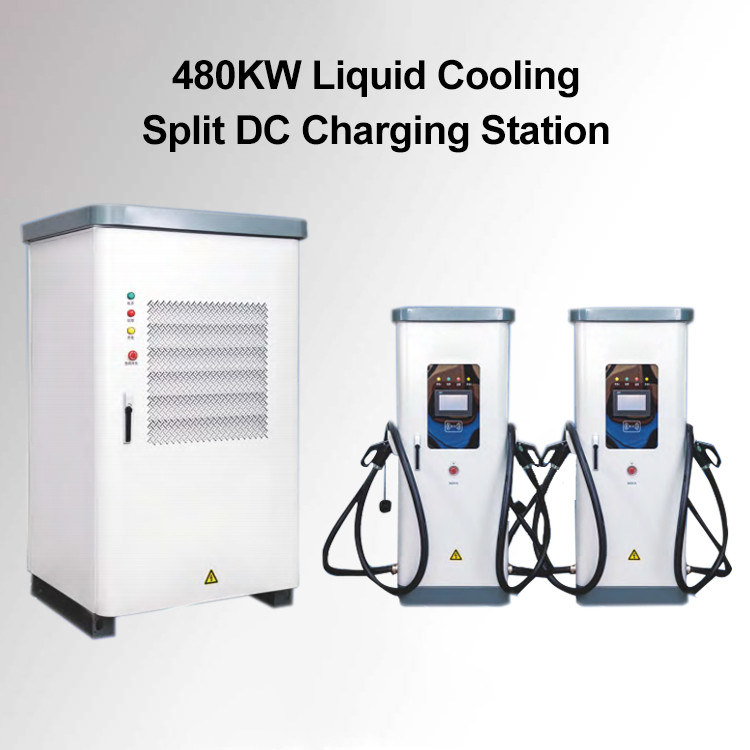

480 KW Commercial EV Charging Station Fast Charger Liquid-Cooled Supercharging Station





Liquid-cooled super charging pile, equipped with liquid-cooled charging system, adds liquid-cooled charging gun, liquid-cooled cable, cooling module and other systems. With the control cable outer diameter of 39mm, high current charging of 600A and even 800A can be achieved. The temperature is controlled below 55℃, which is safe and light to achieve the purpose of fast charging of large electric vehicles.



Product Introduction



The 480kwI liquid-cooled fast charging pile is a system that integrates intelligent charging and advertising business. It mainly includes

1,Intelligent control host: intelligent control and intelligent distribution

2,Liquid-cooled charging post: equipped with liquid-cooled charging gun with maximum power of 480KW, specially designed for fast charging of high-power vehicles, 15 minutes full. It follows the allocation principle of first-come, first-served.

3,Air-cooled charging post. 4,Single gun, minimum 60KW, maximum 120KW configuration.

4,Advertising screen: large intelligent screen, which can remotely control the advertising broadcast and increase the advertising revenue of the charging post.

During the waiting time of charging, it happens to be a good time for advertising implantation. When more and more charging piles are built, their advertising effect will be better and better.

This kind of advertising screen can be shaped separately or designed integrally with the charging pile.



Product Highlights



1. Core Competitiveness

Meet the charging requirements of all models and different powers, dynamically match the charging power requirements of electric vehicles and any terminals; meet the requirements of high power and fast charging of electric vehicles in the future, and avoid repeated investment due to equipment upgrade and transformation and charging pile transformation.

2. Matrix control

Matrix type flexible charging pile is a kind of split charging station facility with power unit matrix control and fully digital intelligent charging module as the core.

3. Smooth Expansion

As the battery charging time and charging power requirements increase, the corresponding charging modules can be expanded to meet the charging requirements. 4. Fast docking The matrix type flexible charging pile has the characteristics of centralized and pre-assembled, which can greatly save the time of on-site installation and commissioning and shorten the construction cycle.

4. Intelligent dispatching

Adopting intelligent charging modules with high power, high power density, high power factor, high efficiency, low harmonics and high intelligence, it is especially suitable for electric vehicles that require high power charging such as buses.

5. Flexible Charging

This machine can dynamically allocate charging power according to the charging requirements sent by the BMS of the vehicle being charged, thus improving the efficiency of the charging equipment. Highly integrated. It is a highly integrated system that combines power conversion, dynamic power distribution, station monitoring, orderly charging management, connection of new energy generation and storage systems, cooling control, and integrated wiring;.

6. High efficiency and energy saving

Adopt high-efficiency components with efficiency above 96%, which can work in the best load-rate zone.



Technical parameters

Product number

DC 480KW Charging Station

Product type

Split DC charging station

Dimensions(H*W*D)(MM)

2183*1163*1056.4 (main cabinet), 1670*692*392 (sub-cabinet)

Display method

7 inch color touch screen

AC input voltage range (V)

380±15%, 3phase+N+PE

AC input frequency (Hz)

45~66Hz

Power Factor

≥0.99

Current Harmonics (THDI)

≤5%

Efficiency

≥96% (full load)

DC output voltage range (V)

200-1000Vdc

Constant power output voltage range (V)

300-1000Vdc

Output power(KW)

480

DC output current (A)

General guns 0~200A (single gun)

Liquid-cooled guns:0~800A

Charging gun length (m)

5

Noise (dB)

<65

charging operation

Swipe /scan code

Running instructions

power, charging, failure

Thermal control

air cooling

BMS Auxiliary Power (V)

12/24

power distribution

Equalization / Smart Distribution / Switching

Altitude (m)

≤2000

Working temperature(℃)

-20~+55

Storage temperature (℃)

-40~+70

average relative humidity

5%~95%

Protective function

Lightning protection, overload, short circuit over temperature, leakage, emergency stop protection, etc.

Charging options

Bring your own, timed, quantitative, fixed fee, appointment, etc.

payment method

RFID

Communication Interface

Standard CAN, Ethernet, RS485, RS232, GPRS,OCPP

Degree of protection/housing material

Outdoor IP54/Sheet Metal Enclosure

product description

1. Friendly visual interface, various information display, prompt information, IC card information, etc.;

2. The electric energy collection system and the cost measurement system provide money-making consumption records, which can be paid by IC card;

3. When the electric vehicle is charged, the battery will automatically stop when it is fully charged, and the user will be reminded by a warning light;

4. When there is overvoltage, undervoltage, short circuit and connection failure, the charging will automatically stop, and an alarm will be given with a warning light;

5. Industrial grade design, good temperature adaptability, long use time, protection grade IP54;

6. The split type DC charger is composed of a rectifier cabinet and a charging terminal, which can be flexibly configured according to application scenarios;

7. This product adopts intelligent flexible charging mode, which can improve the utilization rate of equipment and reduce the comprehensive investment cost, and is suitable for medium and large charging stations;

8. The whole product chain charging pile production mode ensures the reliability of the hardware and the free distribution of power, saving site space.
