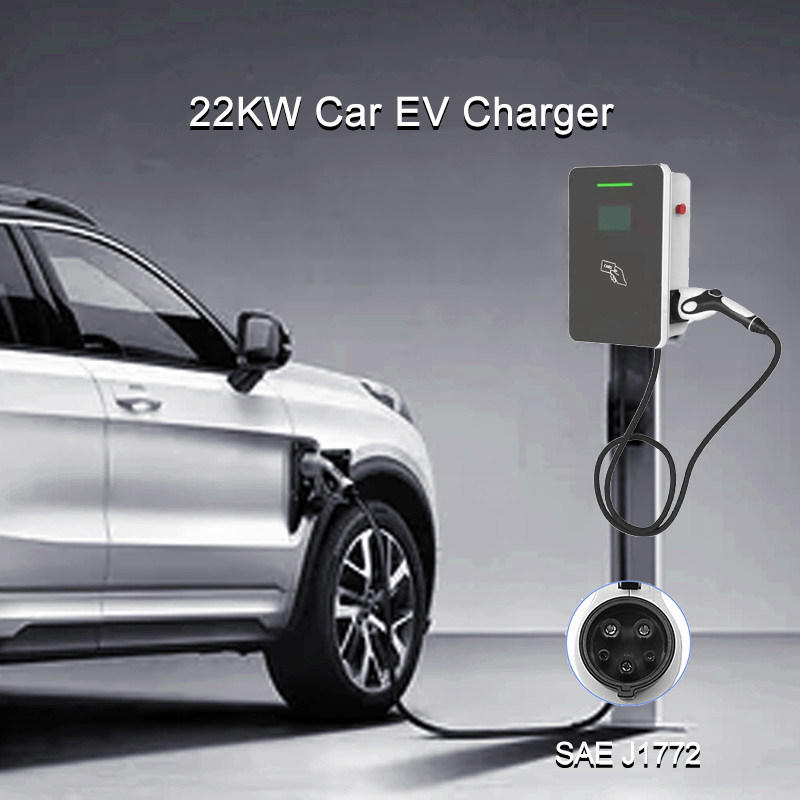

WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: SAE J1772

Model Number: Ac-BG3-22Kw-MG

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
Highlight:

WIFI electric vehicle home charging station

,

OCPP1.6 electric vehicle home charging station

,

32A 3 phase 22kw ev charger

Product Name:
22KW Electric Vehicle Home Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
3 Phase
Charging Capacity:
Up To 22KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
Product Name:
22KW Electric Vehicle Home Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
3 Phase
Charging Capacity:
Up To 22KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger





22KW 32A AC Electric Vehicle Home Charger Station Fast Charge WIFI APP OCPP1.6





Product Introduction



The AC commercial charging station integrates functions such as control, management, query and display, and has the advantages of reliability, flexibility, convenience,and speed, It is widely used in public parking lots, residential parking lots and other small and medium-sized electric vehicle charging places.



1. Charging protection function, the charging process will suspend immediately when BMS communication faults, disconnection, over temperature and over voltage occur.
2. Emergency stop function, the charging process can be suspended immediately by emergency stop switch.
3. Has multiple communication interface such as CAN,RS485/ RS232,Ethernet, 3G wireless networks, which can achieve communication among AC input unit, charging module and DC charging terminal interface, obtain electric vehicle battery system parameters and battery operation parameters during charging process.



Product Parameters



Product name Electric Vehicle Home Charger
Product type Home version
Input Voltage 380VAC ± 20%
Frequency 50Hz/60Hz
Output voltage range 380VAC±10%
Rated output current 32A
Charge gun length 5M
Average trouble-free time 8760 hours
Working Temperature `-20℃~+50℃
Humidity of working environment 5%~95%
Altitude ≤2000M
IP level IP55
Atmospheric pressure intensity 50kPa-110kPa
Self-test function Self-diagnostic function
Remote communication interface Ethernet
Identification Identification by radio frequency card
Metering function Electricity metering
Human-computer interaction interface 4.3 color display shows the following information:charging voltage,charging power, charging time. energy metering information, fault and alarm information
Multaiple charging methods You can choose from fixed time charging ,fixed power charging ,fixed amount charging and automatic full charging modes
Status indication function Three status indications, white,red and green,are set at the upper end of the charging post to indicate different working states. white light:power indication,green light:charging indication, red light is fault indication



Function



• Smart: The mobile phone APP provides functions such as search, navigation, query, and appointment of charging.
• Seflient: Support services such as swiping cards and mobile apps
• System: Advanced cloud fast charging platform system, providing big data monitoring



Details Images



WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger 0

WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger 1



Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger 2

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.



WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger 3

WIFI OCPP1.6 Electric Vehicle Home Charging Station 32A 3 Phase 22KW EV Charger 4



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
