Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: PCB-M1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Supply Voltage: |
120VDC |
Working Current: |
0.6A |
Touch Screen: |
Integrated RGB Interface, 7-inch Liquid Screen |
Brightness: |
900 NIT |
Touch: |
Resistive Touch |
Operating Temperature: |
-20℃~+55℃ |
Storage Temperature: |
-30℃~+85℃ |
Supply Voltage: |
120VDC |
Working Current: |
0.6A |
Touch Screen: |
Integrated RGB Interface, 7-inch Liquid Screen |
Brightness: |
900 NIT |
Touch: |
Resistive Touch |
Operating Temperature: |
-20℃~+55℃ |
Storage Temperature: |
-30℃~+85℃ |

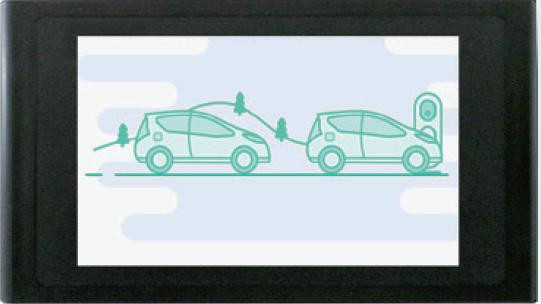

GB/T EV Charger PCB TCU Charging Service Control Suitable for Outdoor Use
Product introduction
TCU mainly realizes functions such as human-computer interaction, background interaction, card swipe control and charging controller interaction. It comes standard with a 7-inch high-brightness resistive touch screen with high integration and is suitable for outdoor use.
Product Parameters
| Supply voltage | 12vDG (±10%) |
| Working current | 0.6A |
| touch screen | Integrated RGB interface, 7-inch liquid screen |
| brightness | 900 NIT |
| touch | Resistive touch |
| Operating temperature | -20℃~+55℃ |
| Storage temperature | -30℃~+85℃ |
| size | 200mn×125mm×40mm |
| installation method | Panel snap |
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
