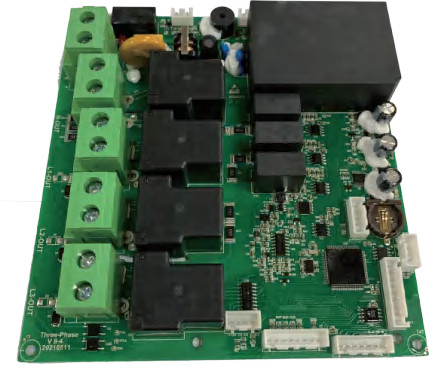

220VAC 3 Phase EV Charger PCB Controller Ground Detection

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB/T

Model Number: PCB-AC-V14

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

3 Phase EV Charger PCB

,

220VAC EV Charger PCB

,

Ground detection ev charger controller

Product Name:
PCB-AC-V19
Input Voltage:
220VAC±20%
Input Frequency:
45~65Hz
Output Voltage:
220VAC±20%
Size:
155*147*35mm
Operating Temperature:
-40°~ +55°
Human-computer Interaction:
LED / OLED Optional
Product Name:
PCB-AC-V19
Input Voltage:
220VAC±20%
Input Frequency:
45~65Hz
Output Voltage:
220VAC±20%
Size:
155*147*35mm
Operating Temperature:
-40°~ +55°
Human-computer Interaction:
LED / OLED Optional
220VAC 3 Phase EV Charger PCB Controller Ground Detection





Gb/T AC 220VAC Type3 3-Phase EV Charger PCB AC Car Charger 4G / Bluetooth





Applications



This series of controllers is a three-phase AC mode 3 controller, with 4 power relays onboard, compatible with single-phase 7kW and three-phase 11kW, and can be used only by external charging gun, transformer, light board, card reader board, screen, etc. , simple and convenient, full-featured.
This series of controllers burns different software versions, which can realize plug-and-charge, credit card charging, offline electronic wallet, network charging and other charging pile functions.



Product Parameters



input voltage 220VAC±20%
Input frequency 45~65Hz
Output voltage 220VAC±20%
Output current 16A/32A
Measurement accuracy ≤2.0
Standby power ≤5W
Basic protection function Overvoltage/overcurrent protection, surge protection,
grounding protection, adhesion protection.
Leakage Protection External A+DC6, DC6 or A type leakage current module
Operating temperature -40°~ +55°
Storage temperature -40°~ +85°
Environment humidity ≤95%
Human-computer
interaction
LED / LCD optional
Sizi 150mm*120mm*35mm



Function Introduction



Intelligent charging, orderly charging,
Overvoltage/undervoltage/overcurrent protection,
energy metering,
leak detection, adhesion detection,
Ground detection, 4G/Bluetooth



Details Images



220VAC 3 Phase EV Charger PCB Controller Ground Detection 0

220VAC 3 Phase EV Charger PCB Controller Ground Detection 1



Company Profile



Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..

We are committed to providing total solutions for the application of new energy technologies.

We have 5 major product lines.

1. DC charging pile: 30KW~360KW DC charging pile

2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile

3. Portable charger gun: 3.5KW/7KW portable charging guns.

4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.

5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..



220VAC 3 Phase EV Charger PCB Controller Ground Detection 2

220VAC 3 Phase EV Charger PCB Controller Ground Detection 3

220VAC 3 Phase EV Charger PCB Controller Ground Detection 4



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
