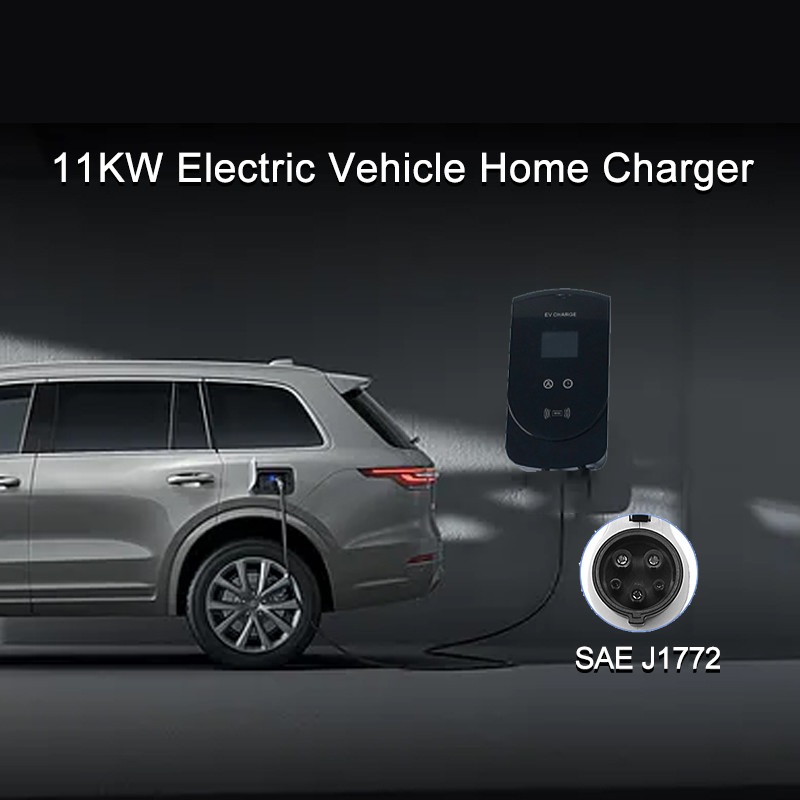

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: SAE J1772

Model Number: AC-BG1-11W-LT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

11KW electric vehicle charging pile

,

380V electric vehicle charging pile

,

SAE j1772 home charging station

Product Name:
11KW Electric Vehicle Home Charger
Rated Input:
380V16A
Rated Output:
380V16A
Input Frequency:
50Hz±1%
Output Power:
11KW
Operating Temperature:
-1℃~+60℃
Relative Humidity:
No More Than 85%
Product Name:
11KW Electric Vehicle Home Charger
Rated Input:
380V16A
Rated Output:
380V16A
Input Frequency:
50Hz±1%
Output Power:
11KW
Operating Temperature:
-1℃~+60℃
Relative Humidity:
No More Than 85%
380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station





SAE J1772 11KW Fast Electric Vehicle Home Charger 380V -30℃ ~ +55℃





Product Introduction



This product is a single-phase AC charging pile, mainly used for AC slow charging of electric vehicles.
The design of the product is highly simple. It provides card swiping and plug and play charging modes, with
charging protection function. The principle of industrial design is adopted for the equipment, with the original
function of toppling protection to ensure safe operation of the equipment. The protection level of the whole
equipment reaches IP65, and it has good dustproofing and waterproofing functions and can be safely operated
and maintained outdoors.



Product Parameters



Product name Electric Vehicle Home Charger
Product type Home version
Shell material Black tempered glass panel, PC body
Equipment dimension 310*161*79.8mm (L*W*H)
Wiring method Getting in and going out from the bottom
Equipment weight <6kg
Gun length 5m
Input voltage 380V
Input frequency 50Hz
Max. power 11KW
Output voltage 380V
Output current 16A
Applicable scene Indoor / Outdoor
Operating temperature -30℃ ~ +55℃
Operating humidity 5% ~ 95%, without condensation
Height above sea level <2000m
Protection level IP65
Cooling method Natural cooling
Safety certification IEC 61851-2017/IEC62196-2:2016
MTBF 100,000 hours
Special protection UV protection design
Safety design Over-voltage protection, under-voltage protection, overload protection, earth leakage
protection, grounding protection, over-temperature protection, low-temperature
protection, lightning protection





Product Introduction



This product is a single-phase AC charging pile, mainly used for AC slow charging of electric vehicles.

The design of the product is highly simple. It provides card swiping and plug and play charging modes, with

charging protection function. The principle of industrial design is adopted for the equipment, with the original

function of toppling protection to ensure safe operation of the equipment. The protection level of the whole

equipment reaches IP65, and it has good dustproofing and waterproofing functions and can be safely operated

and maintained outdoors.



Details Images



380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 0

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 1

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 2

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 3

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 4

380V Electric Vehicle Charging Pile SAE J1772 Home Charging Station 5



FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
