7KW At Home Electric Car Charger 50Hz 16 Amp EV Charging Station

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: GB/T

Model Number: Ac-BG2-7Kw-QL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
Highlight:

GB/T at home electric car charger

,

7KW at home electric car charger

,

50Hz 16 amp ev charging station

Product Name:
7KW Electric Vehicle Home Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
3 Phase
Charging Capacity:
Up To 7KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
Product Name:
7KW Electric Vehicle Home Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
3 Phase
Charging Capacity:
Up To 7KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
7KW At Home Electric Car Charger 50Hz 16 Amp EV Charging Station





GB/T 7KW 16A AC Electric Vehicle Home Charger Car Charger 3-Phase





Wallbox EV Charger Product Introduction



This product is an AC charging pile, which is mainly used for AC slow charging of electric vehicles.
The design of the product is very simple. It offers swipe and plug-and-play charging modes, with
Charging protection function. The equipment adopts industrial design principles, the original factory
The anti-overturning function ensures the safe operation of the equipment. Overall protection level
The device reaches IP65, has good dustproof and waterproof function, and can operate safely
and keep it outdoors.



Product Parameters



Product name Electric Vehicle Home Charger
Product type Home version
Input Voltage 380vac ± 20%
Frequency 50Hz/60HZ
Phase 3 Phase
Operating temperature -30 ℃ to 55 ℃
RCD 30Ma RCD Type A and DC 6Ma function or Type B(optional)
Standby Power ≤3W
Humidity Max.95%(non-regulating)
Eenergy Meter MID certified
OCPP OCPP 1.6 Json (OCPP 2.0 optional)
IP level IP54,IK10
Communication WIFI / Ethemet / 4G (optional)
User interface LED / LCD(3.5) / RFID (mifare iso & IEC 14443A)
Certificate CE/EN/IEC 61851-1:2017,EN/IEC 61951-21-2:2018

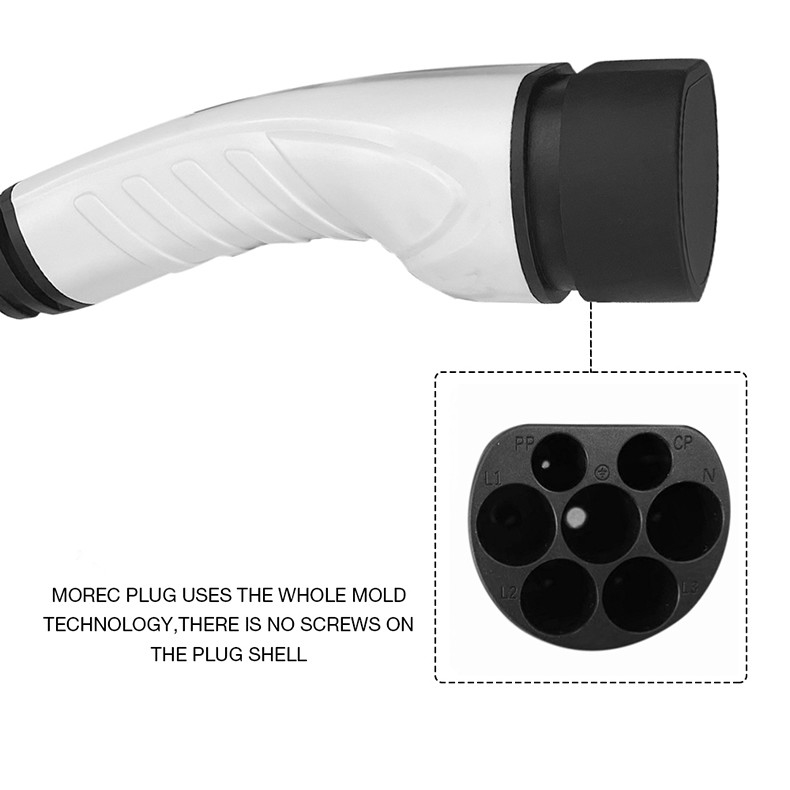

Charging lnterface Type 2 socket
Special Protection Over current protection; Residual current protection; Ground protection Surge protection; Over/Under voltage protection;
Special Protection Over/Under frequency protection; Over/Under temperature protection
Warranty 2 years
Enclosure/Front Panel Plastic PC940/Galvanized steel/Temper glass
Product Dimensions 320*230*100mm
Net Weight 5.1KG





Function


Modular design, stable and reliable: Modular design principle is adopted for the equipment, with flexible configuration and convenient maintenance.
All-round protection and safe operation: It has over-voltage protection, under-voltage protection,
overload protection, earth leakage protection, grounding protection, over-temperature protection, low-
temperature protection, lightning protection and toppling protection, ensuring safe and reliable
operation of the equipment and effectively preventing accidents.
Simple structure: Occupying a small space, lightweight, the equipment can be fixed or portable,
