Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: AC-BG1-22W-LT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
22KW AC EV Charging Station |
Rated Input: |
360V32A |
Rated Output: |
360V32A |
Input Frequency: |
50Hz±1% |
Output Power: |
22KW |
Operating Temperature: |
-1℃~+60℃ |
Relative Humidity: |
No More Than 85% |
Product Name: |
22KW AC EV Charging Station |
Rated Input: |
360V32A |
Rated Output: |
360V32A |
Input Frequency: |
50Hz±1% |
Output Power: |
22KW |
Operating Temperature: |
-1℃~+60℃ |
Relative Humidity: |
No More Than 85% |

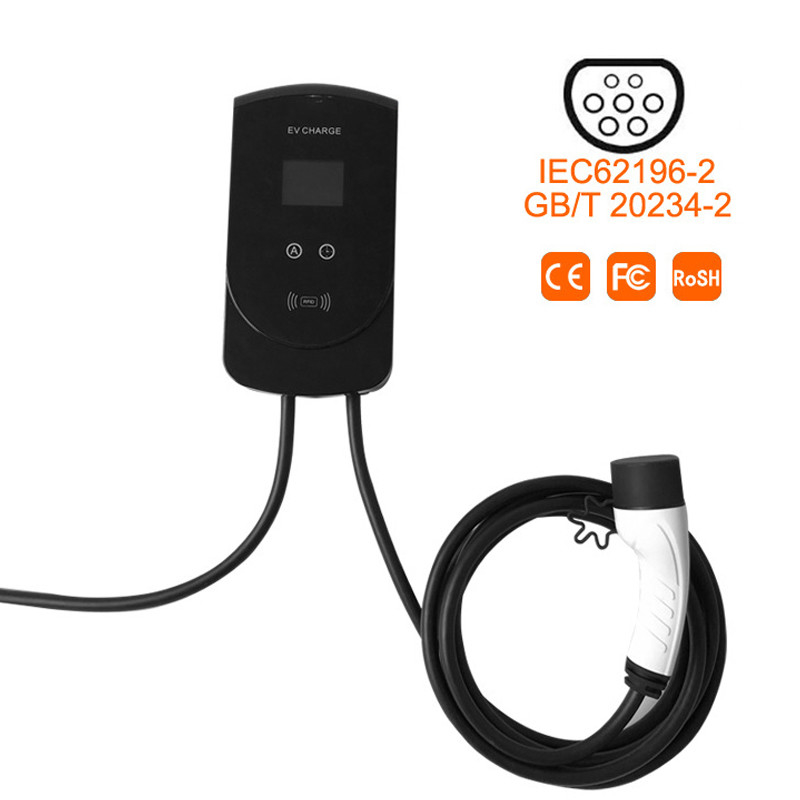

22KW AC EV Charging Station For Electric Car Wallbox With GB/T Certificate
Product Introduction
This product is a single-phase AC charging pile, mainly used for AC slow charging of electric vehicles.
The design of the product is highly simple. It provides card swiping and plug and play charging modes, with
charging protection function. The principle of industrial design is adopted for the equipment, with the original
function of toppling protection to ensure safe operation of the equipment. The protection level of the whole
equipment reaches IP65, and it has good dustproofing and waterproofing functions and can be safely operated
and maintained outdoors.
Product performance
1. Modular design, stable and reliable: The equipment adopts the principle of modular design, with
Flexible configuration and easy maintenance.
2. All-round protection, safe operation: with overvoltage protection, undervoltage protection,
Overload protection, leakage protection, grounding protection, over temperature protection, low temperature protection, lightning protection, dumping protection to ensure safety and reliability
Equipment operation, effectively prevent accidents.
3, easy to use: easy to install and use.
Product Parameters
| Product name | AC EV Charging Station | ||
| Product type | Home version | ||
| Shell material | Black tempered glass panel, PC body | ||
| Equipment dimension | 310*161*79.8mm (L*W*H) | ||
| Wiring method | Getting in and going out from the bottom | ||
| Equipment weight | <6kg | ||
| Gun length | 5m | ||
| Input voltage | 360V | ||
| Input frequency | 50Hz | ||
| Max. power | 22KW | ||
| Output voltage | 360V | ||
| Output current | 16A | ||
| Applicable scene | Indoor / Outdoor | ||
| Operating temperature | -30℃ ~ +55℃ | ||
| Operating humidity | 5% ~ 95%, without condensation | ||
| Height above sea level | <2000m | ||
| Protection level | IP65 | ||
| Cooling method | Natural cooling | ||
| Safety certification | IEC 61851-2017/IEC62196-2:2016 | ||
| MTBF | 100,000 hours | ||
| Special protection | UV protection design | ||
| Safety design | Over-voltage protection, under-voltage protection, overload protection, earth leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection |
||
Details Images
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
