Home > products > Wall Box EV Charger > Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface

Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: Type2

Model Number: XD-AC-BG1-7kw

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: Wooden case packaging

Delivery Time: 15-30 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
High Light:

380VAC home charging stations

,

7KW home AC charger

,

ac charging stations dustproof

Product Name:
7KW Wallbox EV Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
1Phase
Charging Capacity:
Up To 7KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
Product Name:
7KW Wallbox EV Charger
Input Voltage:
380vac ± 10%
Frequency:
50Hz/60HZ
Phase:
1Phase
Charging Capacity:
Up To 7KW
Operating Temperature:
'-30 ℃ To 55 ℃
Standby Power:
≤3W
Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface

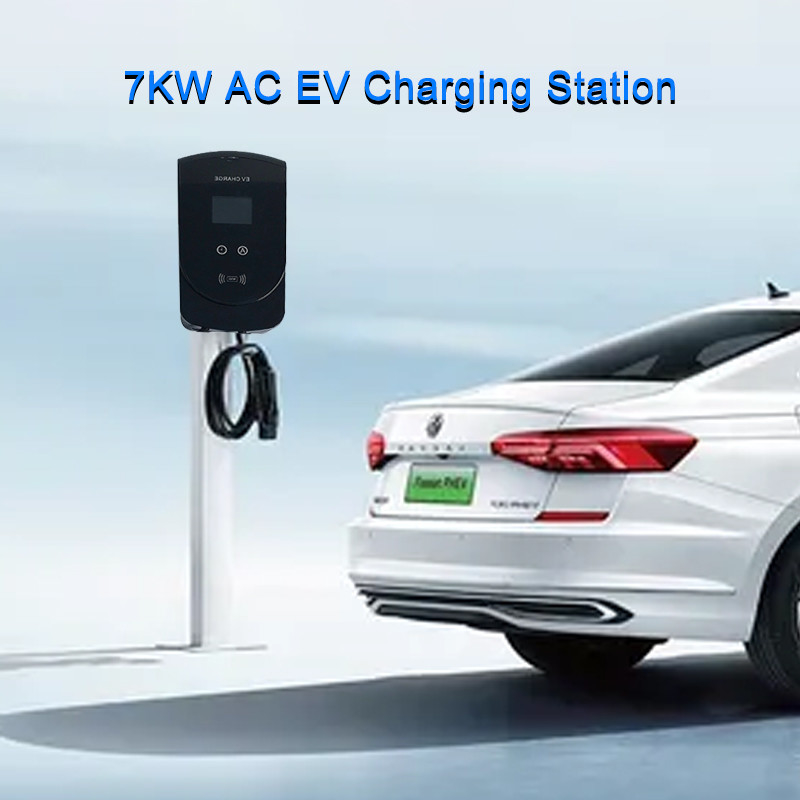

7KW AC EV Charging Station Home Charging Station Screen Display





Wallbox EV Charger Product Introduction



This product is an AC charging pile, which is mainly used for AC slow charging of electric vehicles.
The design of the product is very simple. It offers swipe and plug-and-play charging modes, with
Charging protection function. The equipment adopts industrial design principles, the original factory
The anti-overturning function ensures the safe operation of the equipment. Overall protection level
The device reaches IP65, has good dustproof and waterproof function, and can operate safely
and keep it outdoors.



Product Parameters



Product name Wallbox EV Charger
Product type Home version
Input Voltage 110v-220v   ± 20%
Frequency 50Hz/60HZ
Phase 1 Phase
Operating temperature -30 ℃ to 55 ℃
RCD 30Ma RCD Type A and DC 6Ma function or Type B(optional)
Standby Power ≤3W
Humidity Max.95%(non-regulating)
Eenergy Meter
OCPP OCPP 1.6 Json
IP level IP65
Communication WIFI / Ethemet
User interface LED  / RFID
Certificate CE/EN/IEC 61851-1:2017,EN/IEC 61951-21-2:2018
Charging lnterface Type 2
Special Protection Over current protection; Residual current protection; Ground protection Surge protection; Over/Under voltage protection;
Special Protection Over/Under frequency protection; Over/Under temperature protection
Warranty 2 years
Enclosure/Front Panel Plastic PC940/Galvanized steel/Temper glass
Product Dimensions 320*230*100mm
Net Weight 5KG





Function


Modular design, stable and reliable: Modular design principle is adopted for the equipment, with flexible configuration and convenient maintenance.
All-round protection and safe operation: It has over-voltage protection, under-voltage protection,
overload protection, earth leakage protection, grounding protection, over-temperature protection, low-
temperature protection, lightning protection and toppling protection, ensuring safe and reliable
operation of the equipment and effectively preventing accidents.
Simple structure: Occupying a small space, lightweight, the equipment can be fixed or portable,



Details Images



Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface 0

Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface 1Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface 2

Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface 3

Dustproof 380VAC 7KW AC Home Charging Stations RFID LED Interface 4





FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
