Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: AC-BG1G-3.5W-LT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
3.5KW Wallbox EV Charger |
Rated Input: |
220V32A |
Rated Output: |
220V32A |
Input Frequency: |
50Hz±1% |
Output Power: |
3.5KW |
Operating Temperature: |
-1℃~+60℃ |
Relative Humidity: |
No More Than 85% |
Product Name: |
3.5KW Wallbox EV Charger |
Rated Input: |
220V32A |
Rated Output: |
220V32A |
Input Frequency: |
50Hz±1% |
Output Power: |
3.5KW |
Operating Temperature: |
-1℃~+60℃ |
Relative Humidity: |
No More Than 85% |

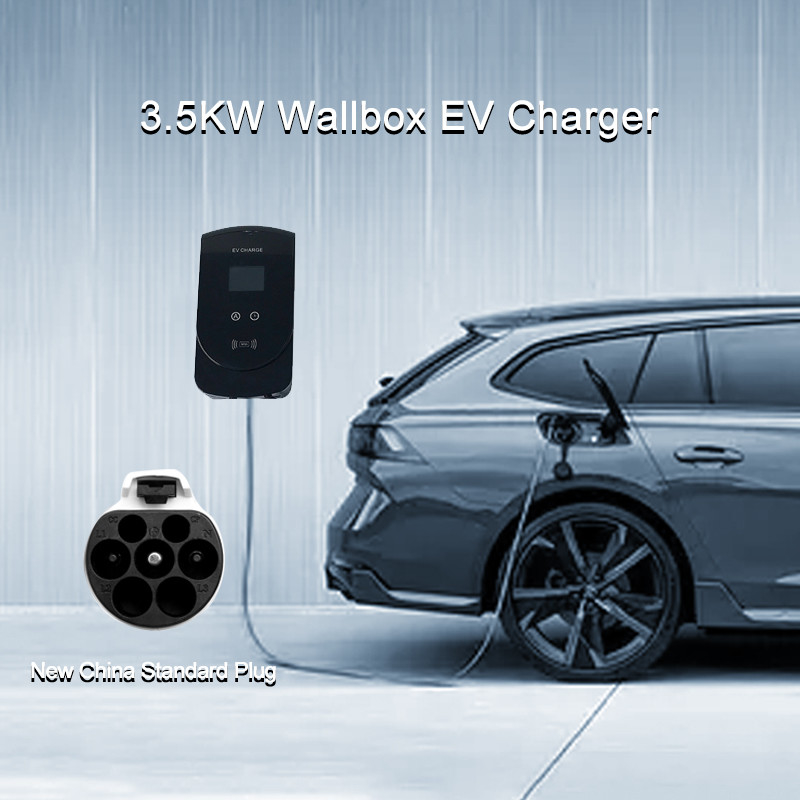

GB/T 3.5KW 16A AC Wall Box EV Charger IP65 Dustproof Waterproof
Product Introduction
This product is a single-phase AC charging pile, mainly used for AC slow charging of electric vehicles.
The design of the product is highly simple. It provides card swiping and plug and play charging modes, with
charging protection function. The principle of industrial design is adopted for the equipment, with the original
function of toppling protection to ensure safe operation of the equipment. The protection level of the whole
equipment reaches IP65, and it has good dustproofing and waterproofing functions and can be safely operated
and maintained outdoors.
Product Parameters
| Product name | Wallbox EV Charger | ||
| Product type | Home version | ||
| Shell material | Black tempered glass panel, PC body | ||
| Equipment dimension | 310*161*79.8mm (L*W*H) | ||
| Wiring method | Getting in and going out from the bottom | ||
| Equipment weight | <6kg | ||
| Gun length | 5m | ||
| Input voltage | 220V | ||
| Input frequency | 50Hz | ||
| Max. power | 3.5KW | ||
| Output voltage | 220V | ||
| Output current | 16A | ||
| Applicable scene | Indoor / Outdoor | ||
| Operating temperature | -30℃ ~ +55℃ | ||
| Operating humidity | 5% ~ 95%, without condensation | ||
| Height above sea level | <2000m | ||
| Protection level | IP65 | ||
| Cooling method | Natural cooling | ||
| Safety certification | IEC 61851-2017/IEC62196-2:2016 | ||
| MTBF | 100,000 hours | ||
| Special protection | UV protection design | ||
| Safety design | Over-voltage protection, under-voltage protection, overload protection, earth leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection |
||
Operating Environment of Product
1. Equipment working environment temperature: -30℃~55℃
2. Relative air humidity: 5%~95%
3. Indoor/Outdoor operation
4. Keep away from flammable and explosive materials around the pile
Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
