Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: CE
Model Number: XD-DC-480KW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 500 per month
Product Number: |
DC 480KW Charger |
Product Type: |
Split DC Charging Station |
Dimensions(H*W*D)(MM): |
2183*1163*1056.4 (main Cabinet), 1670*692*392 (sub-cabinet) |
Display Method: |
7 Inch Color Touch Screen |
AC Input Voltage Range (V): |
380±15%, 3phase+N+PE |
AC Input Frequency (Hz): |
45~66Hz |
Power Factor: |
≥0.99 |
Product Number: |
DC 480KW Charger |
Product Type: |
Split DC Charging Station |
Dimensions(H*W*D)(MM): |
2183*1163*1056.4 (main Cabinet), 1670*692*392 (sub-cabinet) |
Display Method: |
7 Inch Color Touch Screen |
AC Input Voltage Range (V): |
380±15%, 3phase+N+PE |
AC Input Frequency (Hz): |
45~66Hz |
Power Factor: |
≥0.99 |

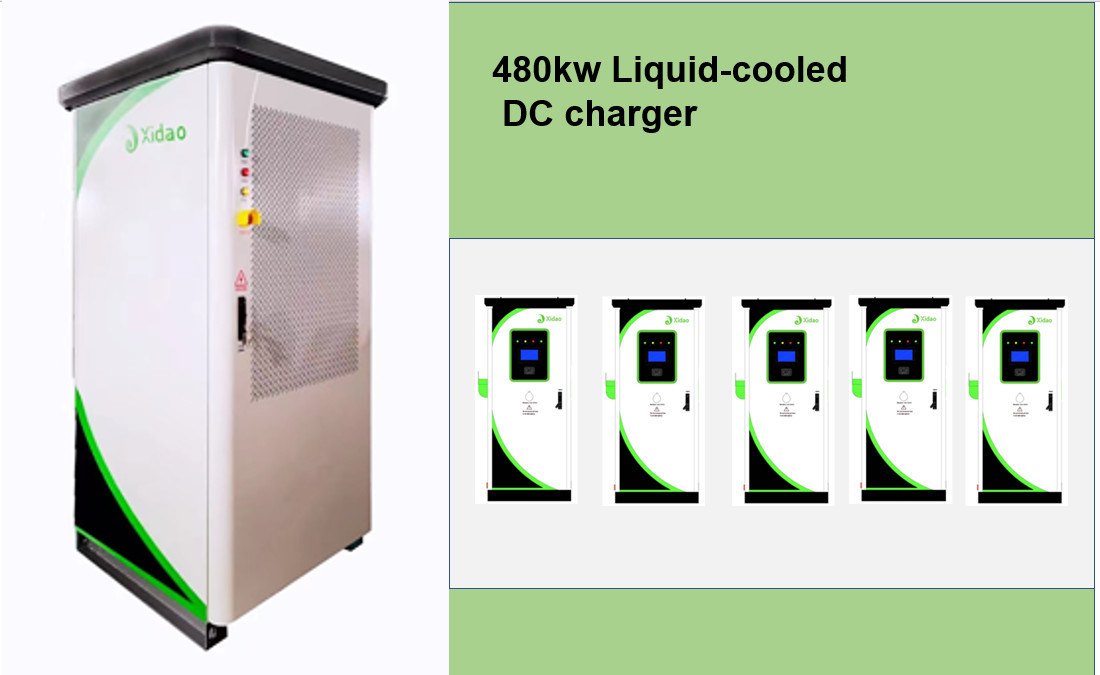

GB/T 480 KW Commercial EV Charger Fast Charger Liquid-Cooled Supercharging Station
At present, GB20234.3-2015 standard specifies the charging gun, the matching cable outer diameter is about 40mm, the soft core cross-sectional area is 70m㎡, and the nominal maximum bearing capacity is 250A. However, in the actual use process, the heat generated by the cable copper wire cannot show good heat dissipation, and for the safe operation of the whole charging system, the charging pile control system will limit the charging current according to the temperature To enable stable operation.
In order to keep up with the growing demand for pure electric vehicles, the construction of high power DC charging piles has become a mandatory requirement, with an output current between 300A-600A, so that high power pure electric vehicles can be fully charged in 15-20 minutes. Ordinary charging piles cannot meet this technical requirement.
Liquid-cooled super charging pile, equipped with liquid-cooled charging system, adds liquid-cooled charging gun, liquid-cooled cable, cooling module and other systems. With the control cable outer diameter of 39mm, high current charging of 600A and even 800A can be achieved. The temperature is controlled below 55℃, which is safe and light to achieve the purpose of fast charging of large electric vehicles.
Product Introduction
The 480kwI liquid-cooled fast charging pile is a system that integrates intelligent charging and advertising business. It mainly includes
1,Intelligent control host: intelligent control and intelligent distribution
2,Liquid-cooled charging post: equipped with liquid-cooled charging gun with maximum power of 480KW, specially designed for fast charging of high-power vehicles, 15 minutes full. It follows the allocation principle of first-come, first-served.
3,Air-cooled charging post. 4,Single gun, minimum 60KW, maximum 120KW configuration.
4,Advertising screen: large intelligent screen, which can remotely control the advertising broadcast and increase the advertising revenue of the charging post.
During the waiting time of charging, it happens to be a good time for advertising implantation. When more and more charging piles are built, their advertising effect will be better and better.
This kind of advertising screen can be shaped separately or designed integrally with the charging pile.
Technical parameters
|
Product number |
DC 480KW Charging Station |
|
Product type |
Split DC charging station |
|
Dimensions(H*W*D)(MM) |
2183*1163*1056.4 (main cabinet), 1670*692*392 (sub-cabinet) |
|
Display method |
7 inch color touch screen |
|
AC input voltage range (V) |
380±15%, 3phase+N+PE |
|
AC input frequency (Hz) |
45~66Hz |
|
Power Factor |
≥0.99 |
|
Current Harmonics (THDI) |
≤5% |
|
Efficiency |
≥96% (full load) |
|
DC output voltage range (V) |
200-1000Vdc |
|
Constant power output voltage range (V) |
300-1000Vdc |
|
Output power(KW) |
480 |
|
DC output current (A) |
General guns 0~200A (single gun) Liquid-cooled guns:0~800A |
|
Charging gun length (m) |
5 |
|
Noise (dB) |
＜65 |
|
charging operation |
Swipe /scan code |
|
Running instructions |
power, charging, failure |
|
Thermal control |
air cooling |
|
BMS Auxiliary Power (V) |
12/24 |
|
power distribution |
Equalization / Smart Distribution / Switching |
|
Altitude (m) |
≤2000 |
|
Working temperature(℃) |
-20~+55 |
|
Storage temperature (℃) |
-40~+70 |
|
average relative humidity |
5%~95% |
|
Protective function |
Lightning protection, overload, short circuit over temperature, leakage, emergency stop protection, etc. |
|
Charging options |
Bring your own, timed, quantitative, fixed fee, appointment, etc. |
|
payment method |
RFID |
|
Communication Interface |
Standard CAN, Ethernet, RS485, RS232, GPRS,OCPP |
|
Degree of protection/housing material |
Outdoor IP54/Sheet Metal Enclosure |
|
product description |
1. Friendly visual interface, various information display, prompt information, IC card information, etc.; 2. The electric energy collection system and the cost measurement system provide money-making consumption records, which can be paid by IC card; 3. When the electric vehicle is charged, the battery will automatically stop when it is fully charged, and the user will be reminded by a warning light; 4. When there is overvoltage, undervoltage, short circuit and connection failure, the charging will automatically stop, and an alarm will be given with a warning light; 5. Industrial grade design, good temperature adaptability, long use time, protection grade IP54; 6. The split type DC charger is composed of a rectifier cabinet and a charging terminal, which can be flexibly configured according to application scenarios; 7. This product adopts intelligent flexible charging mode, which can improve the utilization rate of equipment and reduce the comprehensive investment cost, and is suitable for medium and large charging stations; 8. The whole product chain charging pile production mode ensures the reliability of the hardware and the free distribution of power, saving site space. |
