Product Details
Place of Origin: sichuan
Brand Name: Xidao
Certification: GB/T
Model Number: AC-10Way
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wooden case packaging
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Product Name: |
10-Way Battery Charging Socket |
Battery Type: |
AC Powered |
Input Parameters: |
AC220V/50Hz |
Recharging Current: |
10A |
Dimensions: |
170.5*147.8*80.3 |
Output Parameters: |
AC220V/50Hz |
Product Name: |
10-Way Battery Charging Socket |
Battery Type: |
AC Powered |
Input Parameters: |
AC220V/50Hz |
Recharging Current: |
10A |
Dimensions: |
170.5*147.8*80.3 |
Output Parameters: |
AC220V/50Hz |

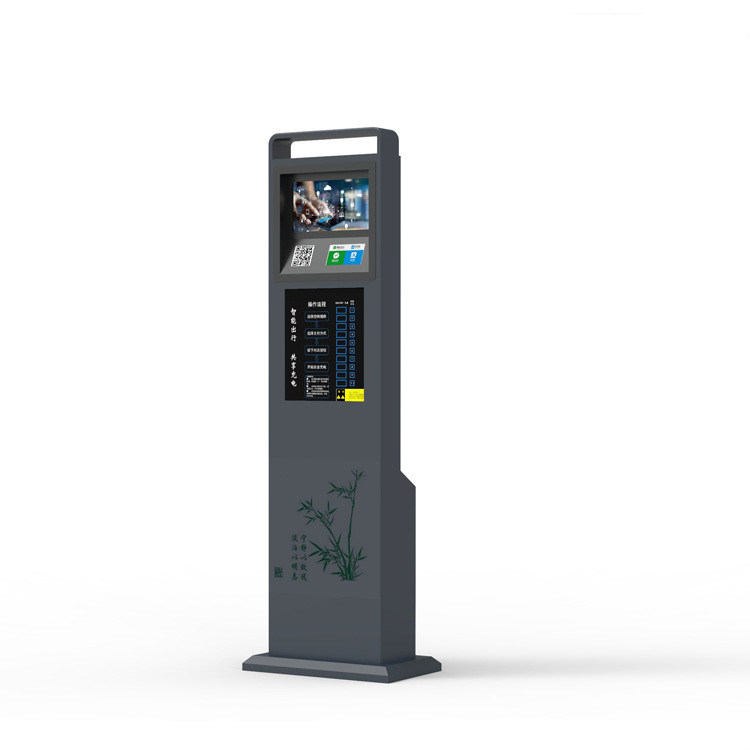

10-Way Battery Car Intelligent Charging Station 10A High-Power Charging
Product introduction:
The intelligent charging pile for battery cars is a new generation of intelligent charging equipment for electric bicycles. The charger charges the electric bike. The payment method can be coin-operated, card-swiping, or code-scanning. The device can lead out 10 outgoing lines to a special socket, and complete the charging through the car-equipped charger of the electric bicycle. It can be connected to the cloud platform to provide users with safe, reliable and intelligent charging services.
| Product model | AC-10Way |
| 1-Way Rated voltage | AC220V |
| 1-Way Maximum input current | 25A |
| 10-Way Rated voltage | AC220V |
| 10-Way Single channel Maximum output current | 3A |
| Voltage overload | 1.2 times the rated value (continuous); 2 ti mes the rated value for 1 second |
| current overload | 1.2 times the rated value (continuous); 10 times the rated value for 1 second |
| frequency | 50Hz±2 |
| Standby power consumption | 5W |
| Accuracy class | Voltage, current level 0.5, power, energy level 1 |
| Communication | RS485 interface, MODBUS protocol |
| Pressure resistance | Voltage signal input, relay output, RS485 communication, leakage current should be less than 2mA, no breakdown or flashover |
| Anti-static interference | Level 3 |
| Anti rapid burst | Level 3 |
| Anti-surge interference | Level 3 |
| Immunity to RF radiation | Level 3 |
| Use environment | Working temperature: -25℃~+55℃, Storage temperature: -25℃~+55℃, Relative temperature: ≤93%RH (40℃±2℃) without condensation, Altitude: ≤2000m |
On-site installation
Check the site conditions on the spot, listen to the owner's advice, and formulate an installation plan based on the actual situation.
The installation steps are as follows:
The back cover of the chassis is designed with an anti-theft built-in design. The machine is composed of a main unit and 5 column sockets. 10 channels are drawn from the outlet terminal block in the machine to the column socket, and the charger is charged by the electric vehicle. One machine can control the on-off time of ten sockets respectively.
According to the length of the general battery car charger cable, it is advisable to keep the distance between each column socket at 100-150 cm. Incoming live wire and neutral wire > 4mm², outgoing wire of each loop > 1.5mm², five public neutral wires > 1.5mm².
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
