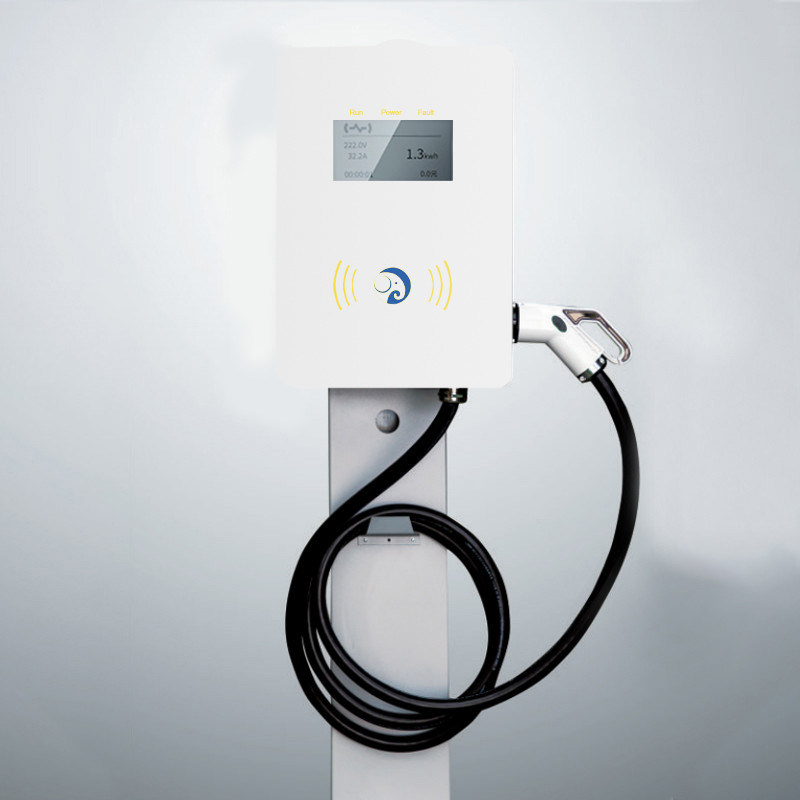

Human Machine Interaction AC EV Charging Station No Noise IP54 Dust Proof Grade

Product Details

Place of Origin: sichuan

Brand Name: Xidao

Certification: CE

Model Number: XD-AC-7KW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: carton

Delivery Time: 3-10 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 per month

Get Best Price
Highlight:

Human Machine Interaction AC EV Charging Station

,

No Noise AC EV Charging Station

,

IP54 AC EV Charging Station

Product Type:
7KW AC Charger
Product Model:
RSAC220-7KW
Dimension (H*W*D)(mm):
315 * 200*92.5
Display Mode:
LED Display
Input Voltage:
220VAC, 1 Phase + N+PE
Output Power (KW):
7
AC Input Voltage (V):
220VAC±15%
Product Type:
7KW AC Charger
Product Model:
RSAC220-7KW
Dimension (H*W*D)(mm):
315 * 200*92.5
Display Mode:
LED Display
Input Voltage:
220VAC, 1 Phase + N+PE
Output Power (KW):
7
AC Input Voltage (V):
220VAC±15%
Human Machine Interaction AC EV Charging Station No Noise IP54 Dust Proof Grade





CE 7KW AC EV Charging Station Fast Charger LED Display Multiple Installation Methods





Product Highlights

1. Multiple Installation Methods

It supports two installation methods: pillar type and wall-mounting type

2. Convenie nt for Expanding

Strong expansibility and support 4G wireless communication

3. Smart and Convenient

Precise measuring, high protection grade, no noise, convenient for installation and maintenance

4. Excellent Human-Machine Interaction

4.3" full color touch screen, more friendly human-machine interactive interface

5. Cloud Management

Support cloud management. It provides more controllable and more thoughtful charging operational management solution for client





TechTechnical Performance Table of 7KW AC Charger
Product Type 7KW AC Charger
Product Model RSAC220-7KW
Dimension (H*W*D)(mm) 315 * 200*92.5
Display Mode LED Display
Input Voltage 220VAC, 1 phase + N+PE
Output Power (KW) 7
AC Input Voltage (V) 220VAC±15%
Input Frequency (HZ) 45~55Hz
Output Voltage (V) 220VAC
Max. Output Current (A) 32
Length of Charging Gun (m) 5
Electric Leakage Protection (mA) 30
Human-machine Display 4.3" Color Screen
Charging Operation Swiping card / scanning code
Measuring and Accounting Time-sharing accounting
Running Indication Power supply, charging, fault
Heat Dissipation Control Natural cooling
Protection Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Optional Install the bracket when landing; hanger
Product Introduction

1. 7KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions;

2. Humanized operation: the charging, accounting and other operations can be realized on phone APP;

3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And env ironment, with the waterproof and dust-proof grade up to IP54;

4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;


Human Machine Interaction AC EV Charging Station No Noise IP54 Dust Proof Grade 0

Human Machine Interaction AC EV Charging Station No Noise IP54 Dust Proof Grade 1

Human Machine Interaction AC EV Charging Station No Noise IP54 Dust Proof Grade 2







FAQ



Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.



Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.



Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.



Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
